CHAPTER 17 – Arthroscopic Rotator Cuff Repair: Double-Row Techniques

Christopher S. Ahmad, MD,
Neal S. ElAttrache, MD

The persistent tear rate after open and arthroscopic rotator cuff repair is concerning [3] [4] [5] [6] [7] and has stimulated development of improved rotator cuff repair techniques. Arthroscopic repair techniques currently emphasize proper recognition of tear pattern, adequate mobilization of retracted tendons, restoration of the native insertional footprint, and adequate repair strength. The techniques for arthroscopic rotator cuff repair have evolved from single-row suture anchors to double rows of suture anchors in the greater tuberosity. Studies have also shown that transosseous tunnel repair techniques provide improved footprint coverage,[2] pressurized contact area at the footprint,[11] and reduced motion at the footprint tendon-bone interface.[1] It is believed that improved contact characteristics will help maximize healing potential between repaired tendons and the greater tuberosity. The most recent techniques developed in double-row rotator cuff repair now replicate transosseous tunnel techniques and create tissue compression against the tuberosity to enhance healing.[10] These new techniques have been referred to as suture bridge techniques.



Preoperative Considerations


History

       Anterolateral shoulder pain exacerbated with overhead activity
       Patients may report specific trauma
       Night pain when sleeping on the affected side
       Weakness with overhead activity


Physical Examination

       Spinati atrophy
       Subacromial crepitation
       Decreased active range of motion
       Tenderness over greater tuberosity
       Weakness to forward elevation indicates supraspinatus tear.
       Weakness to external rotation indicates infraspinatus tear.
       Presence of impingement signs
       Liftoff test performed with the hand behind the back and then lifted off the back indicates subscapularis tear.
       Belly press is performed for patients who have limited internal rotation. The hand is used to press into the patient’s abdomen, and the elbow is brought forward past the body midline. Inability to pass the midline indicates subscapularis tear.


Imaging

       Plain radiographs may indicate proximal humerus migration and sclerosis on the greater tuberosity or undersurface of the acromion for massive chronic tears.
       Magnetic resonance imaging is the standard imaging study. It delineates which tendons are involved, degree of retraction, muscle atrophy, and fatty infiltration of the muscle bellies.


Indications and Contraindications

       Several factors affecting surgical indications include age and health of the patient, activity level, size and chronicity of the tear, degree of pain and disability, and the patient’s expectations.
       Young age, high activity, and relative acuteness of the tendon tear are features supporting early operative treatment.
       Older age, low demands, mild symptoms, and relative chronicity of the tendon tear are features supporting nonoperative treatment.


Surgical Technique


Anesthesia and Positioning

The surgeon’s, anesthesiologist’s, and patient’s preferences determine the type of anesthesia administered. The procedure may be performed under regional anesthesia, general anesthesia, or a combination. The patient may be positioned in either the beach chair or the lateral decubitus position. The beach chair position is more familiar to many surgeons and is often easier to convert to an open procedure. The lateral decubitus position provides traction on the arm, which enhances visualization in the subacromial space.


Surgical Landmarks and Portals


Landmarks

       Clavicle
       Acromion
       Scapular spine
       Acromioclavicular joint
       Coracoid process


Portals

       Posterior portal
       Posterolateral portal
       Lateral portal
       Anterior portal
       Neviaser portal


Examination Under Anesthesia and Diagnostic Arthroscopy

Examination under anesthesia confirms passive range of motion. Diagnostic arthroscopy is performed in a stepwise fashion to evaluate the following:

       Anterior, posterior, and superior labrum
       Proximal biceps tendon
       Rotator cuff, including subscapularis
       Cartilage surfaces of the humeral head and glenoid


Specific Steps (
Box 17-1

)



 Tear Pattern Recognition

A standard posterior portal is established, and glenohumeral diagnostic arthroscopy is performed with appropriate intraarticular procedures carried out. The camera is then introduced into the subacromial space, and a lateral working portal is made 2 cm lateral to the midanterior acromion. A bursectomy is performed, and the tear pattern is identified (crescent-shaped, L-shaped, U-shaped, combined). An acromioplasty is performed as necessary.

Box 17-1

Surgical Steps

   1.    Tear pattern recognition
   2.    Tear mobilization
   3.    Greater tuberosity preparation
   4.    Margin convergence if necessary
   5.    Medial-row suture anchor placement
   6.    Medial suture passing
   7.    Lateral-row suture anchor placement
   8.    Lateral suture passing
   9.    Knot tying


 Tear Mobilization

The lateral mobility of the tear is assessed by grasping the tear edge and pulling laterally. Crescent-shaped tears mobilize easily to the lateral aspect of the greater tuberosity footprint with minimal tension and do not require releases or mobilization techniques (Figs. 17-1 to 17-3 [1] [2] [3]). With the camera in the lateral portal, anterior and posterior tear mobility is assessed by pulling the anterior rotator cuff tear limb posterior and the posterior rotator cuff tear limb anterior. For U-shaped tears, the anterior and posterior tear limbs both have mobility. L-shaped tears have asymmetric limb mobility; typically, the posterior limb is more mobile than the anterior limb.

Figure 17-1
Crescent-shaped tear with greater tuberosity débrided.

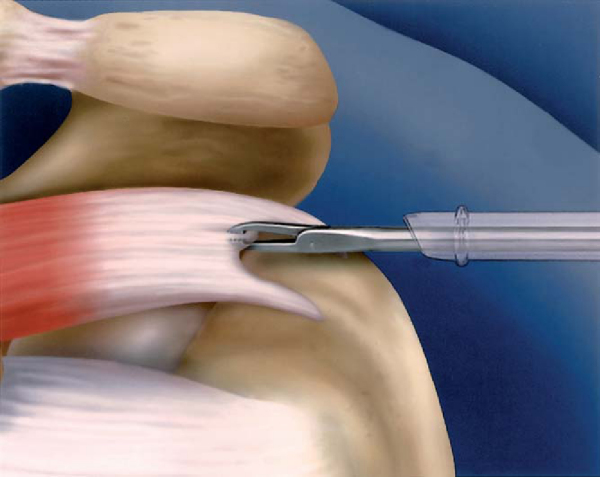

Figure 17-2
Soft tissue grasper from lateral portal to assess lateral mobility.


Figure 17-3
Crescent-shaped tear with soft tissue grasper demonstrating full mobility to lateral footprint.


Many chronic tears are immobile, and mobilization techniques are performed as necessary, including anterior interval slide, posterior interval slide, and capsular releases. A double-row repair requires adequate lateral mobilization of the tendon so that it may cover the entire footprint in the lateral direction (see
Fig. 17-3

).


 Greater Tuberosity Preparation

The greater tuberosity footprint is débrided with removal of soft tissue, and the cortical bone is abraded to stimulate healing. Decortication is avoided because it may compromise suture anchor fixation strength (see
Fig. 17-1

).


 Margin Convergence

U- and L-shaped tears often have poor lateral mobility, and margin convergence sutures are necessary (Figs. 17-4 and 17-5 [4] [5]). While viewing from the lateral portal, free No. 2 sutures are passed through the anterior limb of rotator cuff and then the posterior limb to form a simple suture configuration (
Fig. 17-6

). The suture-passing sequence is repeated for the necessary number of sutures to convert the U- or L-shaped component to a crescent-shaped tear. Two to four sutures are typically placed. Knot tying for these sutures is delayed until after the medial row of suture anchors is placed to avoid restricting exposure to the medial tuberosity. Tying of the margin convergence sutures converts the U-shaped tear to a crescent-shaped tear, and the techniques for crescent-shaped tear repair are then carried out (
Fig. 17-7

).

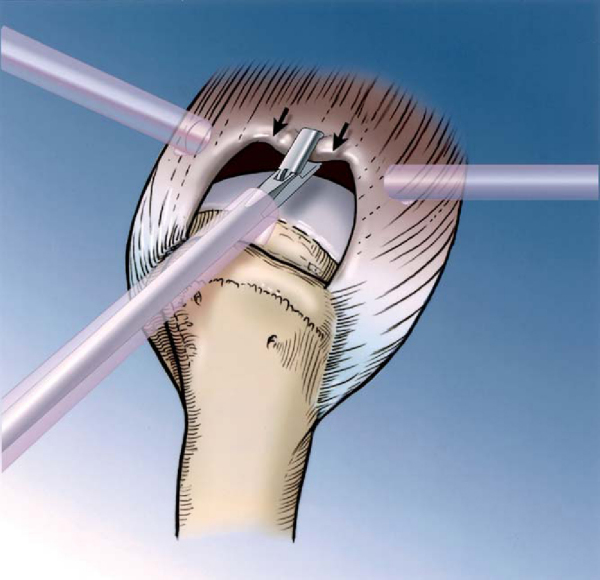

Figure 17-4
Illustration demonstrating U-shaped tear with poor lateral mobility at apex of tear.


Figure 17-5
U-shaped tear visualized from lateral portal.

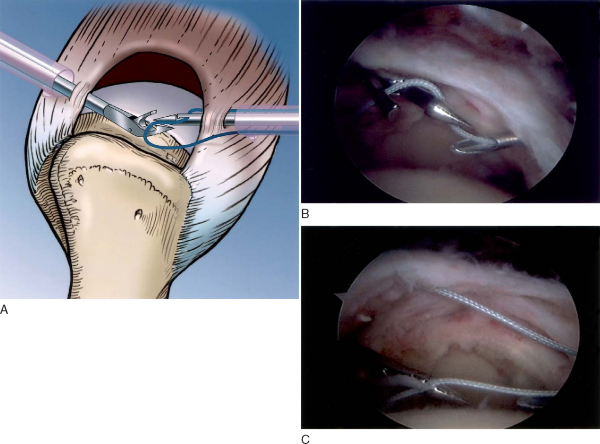

Figure 17-6
Technique of margin convergence with suture introduced through anterior cuff tear limb and retrieved through posterior cuff tear limb. A, Illustration depicting position of suture-passing instruments. B, First suture placed with visualization from lateral portal. C, Second suture placed with visualization from lateral portal.


Figure 17-7
A, After margin convergence sutures are tied, a crescent-shaped tear is obtained. B, After margin convergence sutures are tied, a crescent-shaped tear is obtained as visualized from posterior portal.



 Medial-Row Suture Anchor Placement

The repair sequence involves placement of a medial row of suture anchors followed by suture passing through the tendon in a mattress fashion. The medial-row anchors are positioned as medial as possible adjacent to the articular surface of the humeral head (
Fig. 17-8

). For a typical crescent-shaped supraspinatus tear, two anchors are placed, one in the anterior third and one in the posterior third of the footprint (
Fig. 17-9

). For larger tears, more anchors are placed as necessary. Suture anchors that are double loaded with two sutures are preferred.

Figure 17-8
Medial-row anchor placement adjacent to articular surface.


Figure 17-9
Medial-row anchors in place adjacent to articular surface.



 Medial Suture Passing

If margin convergence sutures are placed, they are tied before medial anchor suture passing. Medial suture anchor passing is then performed, creating medial mattress suture configurations, ideally 10 to 12 mm medial to the lateral edge of the rotator cuff tear. This requires suture-passing instrumentation that will facilitate medial placement of the suture (
Fig. 17-10

). This maximizes the tendon available for contact with the footprint. The sutures are passed with the surgeon’s preferred suture-passing device. The second suture from the anchor, if it is double loaded, may also be placed as a second mattress suture.

Figure 17-10
Suture passing that allows medial placement of the sutures through the tendon.



 Lateral-Row Suture Anchor Placement

Next, the lateral row of suture anchors is placed. On the basis of the size of the footprint repair site, one or two lateral suture anchors are placed. The anchors are placed lateral to the lateral edge of the footprint to fully maximize the tendon-to-footprint contact.


 Lateral Suture Passing

For non–suture bridge double-row repair, the lateral sutures are placed in a simple fashion with the surgeon’s preferred suture-passing devices. Typically, 5 to 8 mm of tissue is captured in the simple sutures.


 Knot Tying

Knot tying is typically performed in the following sequence: lateral sutures working from posterior to anterior; medial sutures working from posterior to anterior.
Figure 17-11

demonstrates a completed double-row repair.

Figure 17-11
Completed double-row rotator cuff repair visualized from lateral portal.



Alternative Techniques: Suture Bridge Methods


Suture Shuttle Through Lateral Anchor

Techniques have been developed to make suture bridges that are equivalent to transosseous tunnel compression stitches. Several variations exist to form a suture bridge, and early methods made use of existing implants and instruments. The medial suture anchors are placed as previously described for a double-row technique. One suture from each anchor is placed in a horizontal mattress fashion. The second suture limbs from each anchor are then passed together just medial to the horizontal mattress sutures. This not only makes a suture bridge but also approximates a modified Mason-Allen suture construct. Either one or two lateral suture anchors may be placed just lateral to the edge of the greater tuberosity (
Fig. 17-12

). After all sutures are passed, the horizontal mattress sutures are tied. One limb from the medial compression suture and one suture from the lateral anchor are retrieved outside the lateral cannula. The suture from the medial anchor is then sewn through the lateral suture with a free needle (
Fig. 17-13

). The lateral suture, acting as a shuttle with the medial suture attached to it, is pulled through the eyelet. A second suture may be shuttled through each anchor to make a cruciate-type suture bridge, if desired, to enhance the repair (
Fig. 17-14

). After the sutures are shuttled, knot tying is performed (
Fig. 17-15

).

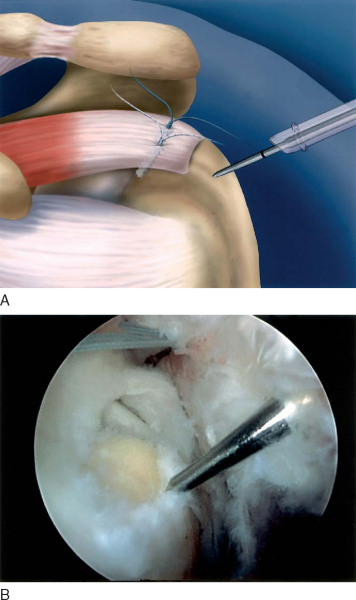

Figure 17-12
A, Punch placed at lateral margin of greater tuberosity. B, Punch for lateral anchor just lateral to edge of tuberosity as visualized from posterior portal.


Figure 17-13
Medial suture is sewn through lateral suture to facilitate shuttling through lateral suture anchor. A, Needle penetrating suture. B, Medial suture passed through lateral suture.


Figure 17-14
Medial sutures are shuttled through lateral suture anchor eyelet.


Figure 17-15
Completed rotator cuff repair with two suture bridges from two medial-row anchors passed through single lateral suture anchor.



PushLock

A new implant has been developed to facilitate placement of compression sutures and to reduce knot tying. For the PushLock (Arthrex, Naples, Fla) device, medial suture anchor placement and suture passing are performed as previously described for the double-row repair technique. A hole is then punched at the intended site for the lateral implant, just lateral to the lateral edge of the tuberosity. The medial sutures to be used for compression (one suture from the anterior medial anchor and one suture from the posterior medial anchor) are then passed through the eyelet of the implant outside the cannula (
Fig. 17-16

). Manual tension is applied to the suture bridge sutures as they are delivered into the tunnel to achieve the desired compression (
Fig. 17-17

). The implant is advanced over the inserter and captures the eyelet, which fixes the sutures in place and eliminates the need for knot tying. The sutures are then cut. Cruciate suture configurations can be made with a second PushLock anchor to further enhance the repair (
Fig. 17-18

).
Figure 17-19

demonstrates a case example of a crescent-shaped tear repaired with a four–suture bridge technique.

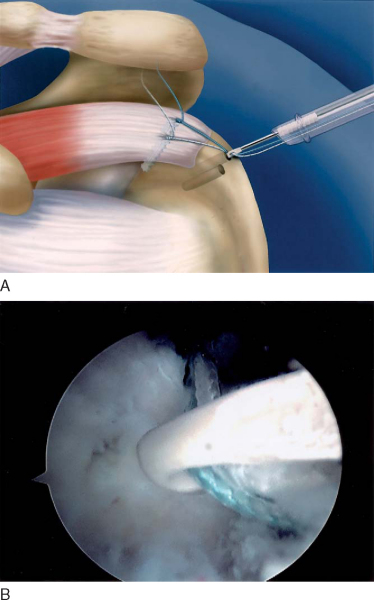

Figure 17-16
A, Eyelet of implant controls medial sutures and is delivered into lateral tunnel. B, Eyelet controlling medial sutures.


Figure 17-17
A, Sutures are tensioned into tunnel and implant is driven down shaft of inserter. B, Implant is driven down shaft of inserter into tunnel.

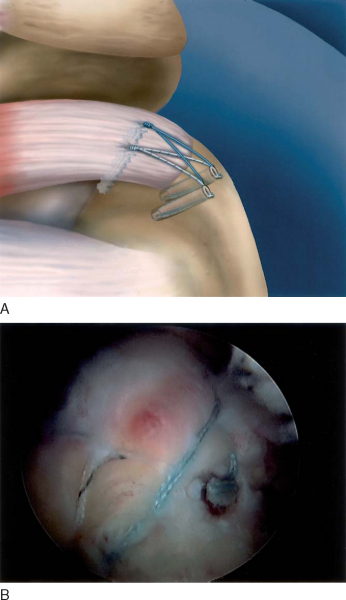

Figure 17-18
A, Completed repair with four suture bridges; lateral knot tying is avoided. B, Clinical visualization of completed repair from lateral portal.


Figure 17-19
Case example of cruciate suture bridge technique with four suture bridges. A, Crescent-shaped tear. B, Completed repair.



Postoperative Considerations

Patients are placed in a sling with a small abduction pillow. The sling is worn continuously for 6 weeks except for bathing. During the first 6 weeks, active elbow, wrist, and hand exercises are performed. From 6 to 12 weeks, passive and active-assisted range of motion is initiated. After 12 weeks, active motion and gentle strengthening are initiated. More aggressive strengthening is initiated at 4 months.


Complications

       Failure of tendon to heal
       Stiffness
       Missed pathologic changes: acromioclavicular joint arthritis, biceps tendinitis
       Infection

PEARLS AND PITFALLS

       The rotator cuff tear pattern must be recognized for an appropriate strategy to be designed for mobilization and repair of the tear.
       Margin convergence should be performed for U-shaped tears to avoid tension overload of the central sutures.
       The medial-row suture anchors must be placed as medial as possible, which is adjacent to the articular cartilage, to maximize and reproduce contact at the repair site and to avoid overcrowding of the greater tuberosity with implants.
       The lateral-row suture anchors must be placed as lateral as possible to avoid overcrowding of the tuberosity with implants and to maximize repair site contact.
       Suture bridge repair constructs create optimal footprint restoration and rotator cuff to tuberosity contact mechanics.


Results

To date, no clinical studies specifically report the outcome of double-row suture anchor repair techniques or suture bridge repair techniques for management of rotator cuff tears. Several laboratory studies indicate improved strength of fixation to cyclic loading for double-row rotator cuff repairs compared with single-row rotator cuff repairs. [8] [9] Other studies have demonstrated that traditional transosseous repair techniques have superior restoration of footprint coverage,[2] pressurized footprint contact area,[11] and decreased motion at the footprint tendon-bone interface.[1] In the laboratory, we have compared suture bridge rotator cuff repairs with double-row rotator cuff repairs that are currently employed clinically.[10] For strength of fixation, the four–suture bridge technique had significantly higher ultimate load to failure with no difference in gap formation to cyclic loading. Furthermore, the suture bridge rotator cuff repair provided more pressurized contact area and mean pressure over the repaired rotator cuff tendon insertion compared with a double-row technique.


References

1.
Ahmad CS, Stewart AM, Izquierdo R, Bigliani LU: Tendon-bone interface motion in transosseous suture and suture anchor rotator cuff repair techniques.
 Am J Sports Med  2005; 33:1667-1671.

2.
Apreleva M, Ozbaydar M, Fitzgibbons PG, Warner JJ: Rotator cuff tears: the effect of the reconstruction method on three-dimensional repair site area.
 Arthroscopy  2002; 18:519-526.

3.

Bishop J, Lo I, Klepps S, et al. Cuff integrity following arthroscopic versus open rotator cuff repair: a prospective study. Proceedings, American Academy of Orthopaedic Surgeons 71st annual meeting; San Francisco, Calif; 2004.

4.
Galatz LM, Ball CM, Teefey SA, et al: The outcome and repair integrity of completely arthroscopically repaired large and massive rotator cuff tears.
 J Bone Joint Surg Am  2004; 86:219-224.

5.
Gazielly DF, Gleyze P, Montagnon C: Functional and anatomical results after rotator cuff repair.
 Clin Orthop  1994; 304:43-53.

6.
Harryman DT, Mack LA, Wang KY, et al: Repairs of the rotator cuff. Correlations of functional results with integrity of the cuff.
 J Bone Joint Surg Am  1991; 73:982-989.

7.
Jost B, Pfirrmann CWA, Gerber C: Clinical outcome after structural failure of rotator cuff repairs.
 J Bone Joint Surg Am  2000; 82:304-314.

8.
Kim DH, ElAttrache NS, Tibone JE, et al: Biomechanical comparison of a single-row versus double-row suture anchor technique for rotator cuff repair.
 Am J Sports Med  2006; 34:407-414.

9.
Ma CB, Comerford L, Wilson J, Puttlitz CM: Biomechanical evaluation of arthroscopic rotator cuff repairs: double-row compared with single-row fixation.
 J Bone Joint Surg Am  2006; 88:403-410.

10.

Park M, ElAttrache N, Tibone J, et al. Footprint contact biomechanics for a new arthroscopic transosseous-equivalent rotator cuff repair technique compared to a double-row technique arthroscopic rotator cuff repair. American Shoulder and Elbow Surgeons Specialty Day meeting; Chicago, Ill; 2006.

11.
Park MC, Cadet ER, Levine WN, et al: Tendon-to-bone pressure distributions at a repaired rotator cuff footprint using transosseous suture and suture anchor fixation techniques.
 Am J Sports Med  2005; 33:1154-1159.
