Chapter 37
Examination of the Muscle Stretch Reflexes
The purpose of testing muscle stretch reflexes is to
localize neurologic pathology to the central or the peripheral nervous
system by looking for evidence of upper motor neuron or lower motor
neuron (or peripheral sensory nerve) dysfunction.
Muscle stretch reflexes in the biceps, triceps, knees,
and ankles should be examined in all patients as part of a routine
neurologic examination. Testing for clonus in the ankles should be
performed when hyperreflexia is seen in the lower extremities.
The muscle spindles are sensory organs located within
the muscles that sense muscle stretch (lengthening). Tapping a tendon
with a reflex hammer causes a sudden muscle stretch that activates the
muscle spindles. The muscle spindles send a sensory impulse to the
spinal cord, which then synapses with motor neurons at that level of
the spinal cord to initiate reflex contraction of the same muscle that
was stretched. For example, tapping the left quadriceps tendon at the
knee stretches the left quadriceps muscle (and its muscle spindles),
initiating reflex contraction of the left quadriceps muscle, which is
observed clinically as extension of the knee. The corticospinal
tract—the upper motor neuron—has an inhibitory influence on the muscle
stretch reflexes in the spinal cord.
  • A reflex hammer.
  • Any kind of reflex hammer will do, but
    reflexes are easier to obtain with a heavier hammer than the typical
    lightweight, tomahawk-style reflex hammer. Many neurologists prefer the
    Queen Square type of hammer, which consists of a rubber-rimmed disc on
    the end of a stick. Others, including the author, prefer a
    Tromner-style hammer, which is more “hammer-like” than the Queen Square
    hammer or the tomahawk. All reflex hammers are fairly inexpensive; go
    to a medical bookstore and pick out a hammer that you’ll actually carry
    around and that works well for you.
Routine Testing of Muscle Stretch Reflexes
  • It is easiest to test the reflexes with
    the patient sitting on the side of a bed or an examining table;
    however, the muscle stretch reflexes can also be tested with the
    patient lying in bed.
  • P.121

  • Test the upper extremity reflexes before
    testing the lower extremity reflexes. It’s also best to check the same
    reflex on each side before proceeding to the next muscle. In other
    words, start by testing the right biceps jerk, then test the left
    biceps jerk, then test the right triceps jerk, the left triceps jerk,
    and so forth.
  • Figures 37-1, 37-2, 37-3 and 37-4
    illustrate and describe how to examine the major muscle stretch
    reflexes in the upper and lower extremities. Hold each limb in the
    optimal position for reflex testing for that muscle, as indicated in
    the figures. It’s important to have the patient’s limb as relaxed as
    possible (simply asking the patient to relax the muscle often helps).
  • Grade the reflex on a scale of 0 to 4, with 0 meaning the reflex is unobtainable and 4 meaning it is severely hyperreflexic. Table 37-1
    summarizes the definition of the grading scale used for muscle stretch
    reflex testing. It is standard to report the grade as the number with a
    plus sign after it. The plus has no real meaning, but it is standard to
    write it that way. If you want, you can write the number without the
    plus, because there is no distinction between a 2, for example, and a
    2+. Unlike muscle strength grading, a minus signs tends not to be used,
    so think of the reflex choices as only five grades (from 0 to 4), and
    choose the one grade that seems to fit best. Some clinicians prefer one
    more choice, however, between 0 and 1, called trace, meaning that there may be a suggestion of a slight reflex present, enough not to call it areflexic.
Figure 37-1
Testing the biceps reflex. Hold the patient’s arm so that it is
passively flexed and that your thumb is resting on the biceps tendon.
Tap on your thumb with the reflex hammer.

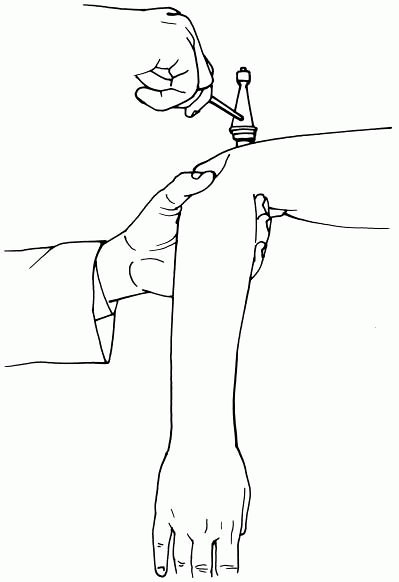

Figure 37-2
Testing the triceps reflex. Hold the patient’s arm so that the upper
arm is abducted at the shoulder and the arm is passively dangling at
the elbow. Tap on the triceps tendon with the reflex hammer.
Testing Reflexes with Reinforcement
When a reflex seems unobtainable or is much diminished,
it may be because the patient’s muscle was not relaxed and the patient
is inadvertently suppressing the reflex. In this situation, it is
useful to try to distract the patient from the reflex task; this may
bring out the reflex if it is really intact and is called reinforcement of the reflex.
Several maneuvers are helpful to do this: One method of distraction is
simply to ask the patient to “bite down” at the time you test the
reflex; another maneuver is to ask the patient to make a tight fist
with the opposite hand while you test the upper extremity reflex on the
other side.
The following common maneuver is particularly helpful when testing lower extremity reflexes:
  • Instruct the patient to curl the fingers of each hand and lock the fingers together in front of him or her.
  • Ask the patient to pull the arms tight (still locked at the fingers) at the count of three.
  • Say “1, 2, 3, pull!” and tap on the lower extremity reflex with the hammer while the patient pulls the arms tight.
When a reflex is only readily obtained using one of
these maneuvers but is difficult to obtain without the maneuver, it
should be graded according to the grade with the maneuver, because the
true reflex was brought out by the distraction. This can be reported,
for example, as, “The biceps jerk was 2+ with reinforcement.”


Figure 37-3
Testing the knee jerk. With the patient sitting and the legs dangling,
tap on the quadriceps tendon (if the patient is lying in bed, lift the
patient’s thigh up slightly with your hand under the posterior thigh so
that the leg is slightly passively flexed at the knee and relaxed, then
tap on the patellar tendon).

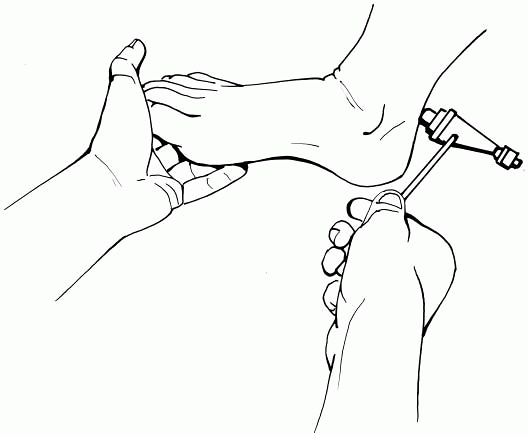

Figure 37-4
Testing the ankle jerk. Push the patient’s foot slightly upward so that
it is passively slightly dorsiflexed at the ankle, and then tap on the
Achilles tendon.


TABLE 37-1 Grading of the Muscle Stretch Reflexesa





Absent reflex

No reflex, even with distracting maneuvers.


Slight reflex

Reflex is definitely present, but diminished; possibly pathologic, depending on the clinical situation.


Typical reflex

This is the average normal reflex, but 1+ and 3+ reflexes can also potentially be normal, depending on the clinical situation.


Brisk reflex

Very brisk reflex; possibly pathologic, depending on the clinical situation.


Very hyperactive reflex

Clearly pathologically hyperactive; 4+ in ankles implies that clonus is also present.

a See text for details of interpretation of possible reflex abnormalities.

Testing for Ankle Clonus
  • Hold the patient’s posterior calf with one hand while you hold your other hand on the sole of the patient’s foot.
  • Keeping the patient’s leg stationary, abruptly (but not painfully) push the sole of the patient’s foot upward.
  • Maintain upward pressure on the patient’s
    foot, so that it stays forcefully (again, not painfully) dorsiflexed
    for a few seconds and observe the response.
Normally, muscle stretch reflexes should be present in
the biceps, triceps, quadriceps (the patellar reflex or knee jerk), and
the Achilles reflex (ankle jerk). These reflexes should be 1+, 2+, or
3+ and be reasonably symmetric on both sides. If ankle clonus is
tested, there should be no more than a couple of beats of clonus seen.
There are some normal variations to be aware of,
however. It is normal for some elderly patients to have diminished
ankle jerks, even in the absence of symptoms of a polyneuropathy.
Although variable, younger patients tend to have brisker reflexes than
older patients, and reflexes are often brisker with anxiety. Last,
triceps reflexes are sometimes harder to obtain than the other reflexes
  • Hyperreflexia of the muscle stretch
    reflexes is potentially abnormal. Because the corticospinal tract (the
    upper motor neuron) normally has an inhibitory influence on the
    reflexes, hyperreflexia—especially extreme hyperreflexia—of the muscle
    stretch reflexes suggests dysfunction of the corticospinal tract (in
    the brain, brainstem, or spinal cord) anywhere above the segment of the
    spinal cord that serves that reflex. Table 36-1 summarizes the lesion localizations suggested by different patterns of hyperreflexia.
  • Although very hyperactive reflexes, such
    as sustained clonus (see following section, Clonus), are usually
    clearly pathologic, the normal patient-to-patient variation in reflexes
    makes it important to interpret reflexes only


    the context of the clinical situation and not to overinterpret isolated
    reflex findings. The likelihood of significance of a reflex finding is
    greater when it was anticipated by the clinical history and the rest of
    the examination. For example, in the clinical setting of bilateral
    upper and lower extremity weakness and numbness due to a probable
    cervical spinal cord process (myelopathy), the finding of 3+
    hyperreflexia would support that clinical localization. On the other
    hand, in a patient without motor or sensory symptoms, the finding of
    the same diffusely brisk reflexes would likely be a clinically
    nonsignificant finding and normal for that patient.

TABLE 37-2 Spinal Root Levels Tested by the Muscle Stretch Reflexes


Levels Involved


C5, C6


C7, C8


L2, L3, L4



Sustained ankle clonus is abnormal and is manifested by
continuous rhythmic plantar flexion of the foot while the examiner
holds the foot in a position to force dorsiflexion. Sustained clonus is
simply extreme hyperreflexia, with the same implications as the finding
of hyperreflexia described previously (see Hyperreflexia).
Clonus can occur elsewhere, but it most commonly occurs at the ankle;
it rarely can be seen when the patellar reflex is tested in patients
who are markedly hyperreflexic at the knee.
  • Hyporeflexia of the muscle stretch
    reflexes is potentially abnormal, and absence of a muscle stretch
    reflex (areflexia) is usually abnormal. Decreased or absent muscle
    stretch reflexes suggest lower motor neuron or sensory nerve
    dysfunction at the level of the reflex tested, affecting the reflex
    arc. Table 36-1 summarizes the localizations
    suggested by different patterns of hyporeflexia. In general, diffuse or
    distal hyporeflexia or areflexia is most suggestive of a
    polyneuropathy, and solitary hyporeflexia or areflexia is most commonly
    seen due to individual nerve root dysfunction (radiculopathy).
  • In the clinical setting of a suspected cervical or lumbar radiculopathy (see Chapter 47,
    Examination of the Patient with a Radiculopathy), the finding of a
    diminished or absent muscle stretch reflex is a particularly helpful
    sign in localization of the nerve root dysfunction. Table 37-2
    summarizes the spinal root levels involved in producing the reflex arc
    for the four major muscle stretch reflexes. Hyporeflexia or areflexia
    of one of these reflexes in the clinical context of a probable
    radiculopathy in that extremity would suggest dysfunction of the nerve
    root involved in that reflex. For example, a patient with pain
    radiating down the posterior left leg who has an absent left ankle jerk
    (but all other reflexes are present) most likely has a left S1
  • A useful mnemonic to remember the root levels involved in the muscle stretch reflexes is 1,2,3,4,5,6,7,8 from bottom to top: the ankle jerk tests


    the S1 level; the knee jerk tests L2, L3, and L4; the biceps jerk tests C5 and C6; and the triceps jerk tests C7 and C8.

  • Testing reflexes in all your patients
    undergoing a neurologic examination will give you the best feel of the
    normal variation of reflexes and help you decide what “normal,”
    “hypoactive,” or “hyperactive” is—although the clinical situation is
    always most important in deciding whether a reflex is pathologically
    brisk or diminished.
  • The brachioradialis reflex is another C5,
    C6 reflex (similar to the biceps reflex). This can be tested by tapping
    on the insertion of the brachioradialis tendon on the dorsal lateral
    radius a couple of centimeters proximal to the wrist. Although usually
    obtainable, this reflex isn’t as readily elicited as the other upper
    extremity reflexes, and for most clinical situations, it rarely adds
    much to the examination that wasn’t already discovered by the biceps
  • The muscle stretch reflexes are also commonly referred to as deep tendon reflexes.
    This terminology is not neuroanatomically accurate because the reflex
    tested is initiated by muscle stretch and not from the Golgi tendon
    organs; however, many clinical neurologists, including, admittedly,
    this author, still use the term. Use whatever terminology you like.

This website uses cookies to improve your experience. We'll assume you're ok with this, but you can opt-out if you wish. Accept Read More
