Perhaps no topic has generated as much interest in
orthopaedic spine surgery over the past 10 years as anterior lumbar
interbody fusion (ALIF). Although anterior fusions have been performed
on the spine for more than 50 years, it is only recently that interest
in the procedure has exploded. Traditionally, anterior or anterolateral
approaches to the lumbar spine were performed for tumor, trauma, or
infections. In these cases, debridement, strut grafting, and
occasionally anterior fixation were used to decompress the spinal canal
or stabilize the anterior spinal column. The advantages of these
procedures included direct spinal canal decompression and
reconstruction of the weight-bearing capability of the anterior column.
Another advantage is that they avoid injury to posterior muscles.
The avoidance of posterior muscle dissection is
important. Often, when posterolateral fusions were performed for
degenerative disc problems, patients would have continued complaints of
fatigue and weakness in the lumbar spine. Some of these symptoms may
have been due to injury to the paraspinal muscles leading to “fusion
disease” (19). In addition, over the past
several decades, much research has pointed to the disc as a predominant
source of chronic low back pain (see Chapter 144).
Fusion procedures that eliminate discs entirely may offer advantages
that more traditional posterior fusions do not. For both of these
reasons, the indications for ALIF have greatly expanded over the last
Lumbar interbody fusion is indicated in selected
patients with degenerative disc disease, internal disc derangement,
spondylolisthesis, pseudarthrosis, and, occasionally, scoliosis,
trauma, or infection. Each case must be evaluated on an individual
basis to determine the appropriateness of surgical intervention.
Degenerative disc disease shows radiographic changes of disc-space narrowing, endplate sclerosis, osteophyte formation,


and occasionally vacuum phenomena within the disc space. Magnetic
resonance imaging (MRI) corroborates this diagnosis, revealing “Modic”
changes in the endplates surrounding the degenerative disc (14).
Many of these changes can be traced to a previous episode of disc
herniation that had been treated either with or without surgery. Often,
in these cases, the sciatica has resolved but has been replaced by
persistent chronic midline low-back pain.

Many patients with degenerative disc disease complain of
pain over the sacroiliac joints, particularly if the L5–S1 disc space
is involved. Most patients with degenerative disc disease can be
successfully treated with an aggressive physical therapy program that
includes trunk stabilization exercises and nonimpact aerobics. In the
majority, symptoms improve, and patients decide to live with a
low-level midline low-back ache. Other modalities that may be helpful
include short-term periods of bracing, administration of nonsteroidal
antiinflammatory medication, and occasionally manipulation. Epidural
steroid injection, prolonged bed rest, transcutaneous electrical nerve
stimulation units, and passive modalities such as heat, massage, or ice
have not been proven to be of benefit.
Before offering surgery, evaluate a patient’s
psychological profile. Office findings of pain behaviors, Waddell’s
signs, chronic narcotic use, or excessive secondary gain are
contraindications for surgical treatment (see Chapter 144).
In addition, evaluate the adjacent discs. Ideally, only a one- or
two-level fusion should be performed for degenerative disc disease.
Fusion of more than two levels leads to less satisfactory clinical
results. MRI of the adjacent disc is an excellent screening test. With
normal MRI findings, it is safe to assume that the adjacent disc can be
left unfused. If MRI is abnormal, then discography may be indicated to
evaluate adjacent levels for fusion.
Patients with a normal radiographic examination but
abnormal MRI may have internal disc derangement (IDD). The MRI
abnormalities of IDD include decreased signal intensity within the disc
nucleus on T2-weighted images, annular tears (with or without
enhancement), and high-intensity-zone lesions. In these cases, initiate
a similar nonoperative treatment program before considering surgical
therapy. Should patients satisfy diagnostic criteria and fail to
improve with adequate conservative measures over 3–4 months, then
discography is indicated for confirmation of the diagnosis. A positive
discogram should include reproduction of the patient’s symptoms upon
injection, abnormal morphology with dye leakage through annular
disruptions, and normal adjacent-level injections without pain
reproduction (3). A patient who meets all of these criteria may be a candidate for ALIF surgery (1,6).
Other treatment modalities may include steroid injection
within the disc, thermal repair of the disc annulus, or annular
debridement. ALIF surgery, however, has the longest history of
successful results in the treatment of this condition. It must always
be kept in mind, however, that success is not universal in the
treatment of patients with IDD. Many clinical reports document success
rates in the 50% to 70% range (1,6,7,8 and 9).
Patient selection is critical. Offer ALIF only to highly motivated
patients with single-level disease who have no psychological overlay,
secondary-gain issues, or chronic narcotic use. Only strict selection
criteria will lead to an acceptable success rate from surgery.
Often, degenerative spondylolisthesis with spinal
stenosis does not require ALIF. Most patients with this condition can
be successfully treated with posterior decompression and posterolateral
fusion techniques (19). In adult isthmic spondylolisthesis, however, ALIF plays an important role (see Chapter 162).
My approach to adult isthmic spondylolisthesis has
evolved over the years. In patients in whom reduction of a
spondylolisthesis is planned, anterior interbody support is necessary
to prevent late hardware failure or pseudarthrosis. In patients with
spondylolisthesis with a well preserved disc space and translational
motion on flexion–extension films, anterior interbody support in
addition to posterior fixation is necessary to achieve a high incidence
of solid fusion. In patients with a collapsed disc space with
degenerative changes, as well as isthmic spondylolisthesis, fusion with
either anterior procedures alone or posterior procedures alone may be
successful. Interbody fusion cages alone have successfully been used in
this subset of spondylolisthesis patients. Exercise caution, however,
when using cages alone for a spondylolisthesis patient who has a
preserved disc space and hypermobility. In these cases, it is often
difficult to obtain stability through the use of anterior cages alone.
In selected cases of scoliosis and kyphosis in which
correction will be performed, anterior release and interbody fusion are
indicated. In addition, for patients with traumatic endplate disruption
or disc space infection, debridement and interbody fusion are helpful.
Finally, in cases of previous pseudarthrosis of a posterolateral
fusion, interbody fusion is often the only means of obtaining a solid
arthrodesis. In addition, it avoids dissection through a previously
scarred posterior paraspinal muscle approach.
Anterior lumbar interbody fusion surgery can be performed through a variety of surgical approaches. Open


approaches include the transperitoneal, anterior retroperitoneal, and
retroperitoneal flank approaches. For endoscopic techniques, the
anterior transperitoneal laparoscopic approach has become popular, as
has the retroperitoneal endoscopic approach using balloon insufflation
or gasless techniques. All of these approaches require an excellent
knowledge of the anatomy surrounding the middle and low lumbar spine (Fig. 146.1).

Figure 146.1. Skin incisions utilized in anterior lumbar surgery. A:
A skin incision utilized in the minilap retroperitoneal approach. A
vertical paramedian incision may also be used. In this approach, the
anterior rectus sheath is divided in line with the skin incision, the
rectus abdominis muscle protected, and the preperitoneal space
developed lateral to the peritoneal contents. B:
The laparoscopic transperitoneal technique utilizes small skin
incisions for the placement of the viewing camera (periumbilical
portal), 5 mm incisions for lateral retractors, and a 15–20 mm incision
for the placement of the fusion cages. This incision is typically
placed in the suprapubic location for the L5–S1 disc space. C:
Approach the lumbar interbody spaces laterally through a flank
approach. Position the patient laterally with the ipsilateral hip
flexed to relax the psoas muscles. Make a flank incision paralleling
the twelfth rib. The position will vary, depending on the level for the
fusion. For L-1 burst fractures, a typical incision will overly the
eleventh rib. For L-2 or L-3 access, a twelfth rib incision is useful,
and an incision midway between the iliac crest and the twelfth rib is
useful for the L3–4 space.
Surgeons must be familiar with the vascular anatomy,
including the bifurcation of the aorta and vena cava and the
surrounding veins such as the iliolumbar vein or segmental vessels, as
well as the path of the ureters and the left-sided placement of the
sigmoid colon. In addition, the locations of the nerve roots as they
exit the foramina and of the presacral parasympathetic plexus should be
well known. Surgeons unfamiliar with this vascular anatomy or unwilling
to handle complications from injuries to these and other important
structures should enlist the help of a vascular or general surgeon in
exposing the anterior lumbar spine (see Chapter 138).
Open Transperitoneal Approach
The open transperitoneal approach is the oldest and most traditional approach to the anterior lumbar spine.
  • Make a midline vertical skin incision, and split the fascia between the rectus abdominis muscles (Fig. 146.2).

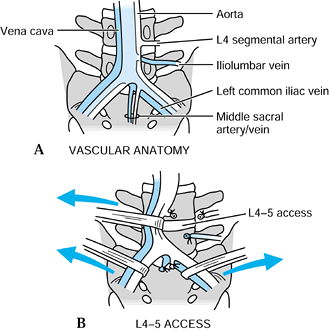

    Figure 146.2. A:
    Normal vascular anatomy of the anterior lumbar spine. Typically, the
    vena cava bifurcates at a higher point than the aorta. Usually, it
    bifurcates at the L4–5 disc space, and the aorta bifurcates over the
    L-5 body. The iliolumbar vein is a branch of the left common iliac vein
    and runs in an inferior direction at approximately 40°. B:
    Access to the L5–S1 disc space is typically between the bifurcation of
    the vessels. Ligation and control of the middle sacral artery and vein
    is necessary for complete disc exposure. At L4–5, the most common
    access pathway is to the left of both of the great vessels, with
    retraction in a left-to-right direction. This requires control and
    ligation of the iliolumbar vein for complete vessel mobility. Use blunt
    dissection only at both levels to prevent damage to the presacral nerve
  • Enter the peritoneal cavity, and retract the small bowel superiorly and the sigmoid colon to the left laterally.
  • Typically, the aorta and vena cava
    bifurcate at the level of the L-5 vertebra. There is considerable
    variation, however, so check the preoperative MRI to confirm the level.
  • P.3810

  • To expose the L5–S1 disc space, incise
    the posterior peritoneum vertically overlying the disc space. This
    incision can be safely made between the bifurcation of the aorta and
    vena cava.
  • The presacral plexus of nerves runs
    directly over the L5–S1 annulus at this level. To minimize damage to
    this plexus, infiltrate the retroperitoneal space with saline, using a
    fine needle, before dividing the posterior peritoneum.
  • Cut the peritoneum without cautery, and
    dissect over the disc space bluntly to minimize the risk of damage to
    the nerve plexus. In men, retrograde ejaculation may result if this
    plexus of nerves is damaged.
  • Ligate the middle sacral artery and vein, which are adherent to the annulus, before exposing the disc.
  • At L4–5, access to the disc space is more difficult. Study the vascular anatomy preoperatively on the patient’s MRI scan (Fig. 146.2).
    Occasionally, the L4–5 disc space can be approached between the
    bifurcation of the vessels. Most commonly, however, a left-to-right
    path to the L4–5 disc space is recommended. In this manner, the aorta
    and vena cava are both retracted from the left to the right across the
    L4–5 disc space. This retraction is only possible after the iliolumbar
    vein is ligated. This vein descends at a 45° angle from the vena cava,
    angling toward the psoas muscle on the left side.
  • Once it is ligated, adequate mobility of
    the great vessels is usually obtained. If possible, avoid dissection
    between the aorta and vena cava.
  • The presacral plexus nerves are particularly vulnerable during dissection between the great vessels.
  • At L3–4 disc space, the aorta and vena cava are more mobile, although segmental vessels need to be ligated to obtain exposure.
  • After exposure is obtained, it is
    mandatory that the vascular structures be protected throughout the
    fusion procedure. I prefer to drive four Steinmann pins covered with a
    red rubber catheter into the endplates above and below the disc space
    to be worked on. These four pins serve as self-retaining retractors,
    providing a safe zone in which to perform the fusion. Other retraction
    systems are available, as well as self-retaining blades that may be
    staked through the vertebral endplates.
  • Take particular care to avoid injury to
    the vena cava and common iliac veins. Once exsanguinated by the
    retraction, they are difficult to visualize and are prone to injury.
    Figure 146.3. Anteroposterior (A) and lateral (B)
    radiographs of a 39-year-old man with persistent low-back pain. He had
    a history of remote sciatica, which resolved but has now developed into
    persistent low-back pain despite maximal physical therapy. These
    radiographs show classic changes of degenerative disc disease: a
    narrowed disc space, sclerotic endplates, and marginal osteophyte
    formation. The L4–5 disc was normal on MRI, and thus no discography was
  • Transperitoneal exposures of the lumbar spine above


    L-3 are difficult because of the renal and mesenteric vessels. At these
    levels, the flank retroperitoneal approach offers a lateral exposure of
    the lumbar vertebral bodies. This approach is most useful when
    debridement for infection, trauma, or tumor is required. When
    corpectomy is necessary, a lateral plate device is useful for stability
    and can best be placed from a lateral approach. If debridement and
    grafting alone are being performed, the anterolateral or anterior
    approach is adequate.

Flank Approach
The flank approach involves an oblique incision centered
over the area of pathology of the lumbar spine. It parallels the
twelfth rib and is anywhere from 4 to 8 in (10–20 cm) long, depending
on the size of the patient.
  • Use fluoroscopy to center this incision directly over the level of pathology.
  • Should exposure of the low lumbar spine be required as well, curve the incision across the lateral aspect of the abdomen.
  • After incising the skin, divide the
    external oblique, internal oblique, and transversalis muscle layers in
    line with the incision.
  • Take care when dividing the transversalis to ensure that the reflection of the peritoneum is free.
  • Once the transversalis fascia is divided,
    enter the retroperitoneal space, which is behind the fascia surrounding
    the kidney and thus is truly behind Girota’s fascia.
  • After entering the retroperitoneal space,
    identify the psoas muscle, and take care to preserve the ilioinguinal
    nerve lying on its surface.
  • The origin of the psoas muscle is usually
    at the L-1 body, and each of the lumbar nerve roots as they exit the
    foramina run in the substance of the psoas muscle. For this reason, the
    psoas must be retracted in an anterior-to-posterior direction to expose
    the appropriate disc space.
  • Perform this exposure, using elevators and cautery, controlling segmental vessel as needed.
This approach gives excellent visualization of the
lateral aspect of the disc and vertebral body; it is limited
posteriorly by the level of the nerve at the foramen and anteriorly by
the great vessels. If necessary, dissect the anterior longitudinal
ligament free from the vertebral bodies, and carry out subperiosteal
dissection around to the opposite side of the vertebral body. This
maneuver permits complete release of all soft-tissue structures in
cases of deformity.
Anterior Rectus–sparing Retroperitoneal Approach
My preferred approach for ALIF is the anterior
rectus-sparing retroperitoneal approach. In this approach, none of the
muscles of the abdominal wall is divided, and therefore quick recovery
is possible. I prefer a transverse incision.
  • Begin in the midline, and extend the incision to the left for approximately 3–4 in (7.5–10 cm).
  • Divide the anterior rectus sheath, and retract the rectus muscle from the midline to the left.
  • Identify the posterior rectus sheath and the arcuate line.
  • Use blunt dissection beneath the arcuate
    line to enter the preperitoneal space, and continue the dissection
    laterally to the left until you are lateral to the peritoneal contents
    and the psoas muscle can be identified.
  • Place a retractor to pull the peritoneal contents toward the midline to expose the retroperitoneal space overlying the spine.
  • Identify the left ureter, and protect it
    throughout the procedure. In general, in cases involving the L3-4 or
    L4-5 disc space, the ureter will be retracted toward the midline with
    the visceral peritoneum. At the L5-S1 space, the ureter will usually be
    on the left side of the incision and will be retracted laterally.
  • Identify the sympathetic chain running on the psoas muscle and protect it.
  • The dissection at this point proceeds in much the same fashion as previously described (see “Open Transperitoneal Approach” above).
  • Bluntly dissect the tissues lateral to the aorta and vena cava at the L4–5 space or between the great vessels at L5–S1.
  • At L4–5, ligate the iliolumbar vein to allow exposure.
  • At L5–S1, ligate the middle sacral artery and vein to allow blunt dissection to proceed along the annulus.
  • Several self-retaining retraction systems are available for use through this “minilaparatomy (minilap)” approach.
In 1993, I began performing laparoscopic transperitoneal
fusion of the lumbar spine and developed this approach along with Dr.
David Mahvi, my general surgery colleague (13,20).
The L5–S1 level lends itself to an endoscopic approach because of its
easy accessibility between the bifurcation of the great vessels (Fig. 146.4).
Figure 146.4.
Laparoscopic transperitioneal fusion access route. Surgery consisted of
anterior discectomy at L5–S1, distraction, and insertion of two tapered
(LT) cages (Lumer Tspered, Sofamon Danek, Memphis, TN) at the L5–S1
disc space. Note the restoration of foraminal height and sagittal
  • Give a light bowel preparation the night before surgery.
  • Facilitate exposure by placing the
    patient in the Trendelenburg position and allowing abdominal
    insufflation, which causes the small bowel to drift toward the
    diaphragm. It precludes the need for retraction of the abdominal
    contents; thus postoperative ileus is eliminated.
  • Usually, the laparoscopic camera is placed in a periumbilical incision.
  • Place two 5 mm portals laterally, midway between the


    umbilicus and the pubis, to allow retraction or suction as needed.

  • Finally, place a suprapubic portal in
    line with the disc space. At the L5–S1 level, this is often two to
    three fingerbreadths above the pubic symphysis. At L4–5, it is usually
    midway between the umbilicus and pubic symphysis.
  • Drain the bladder with a Foley catheter before placing this portal.
  • The sigmoid colon may need to be
    retracted toward the left and will usually stay in this position
    throughout the procedure. The remainder of the dissection proceeds in
    much the same fashion as previously described (see “Open Transperitoneal Approach” above).
  • Incise the posterior peritoneum
    vertically overlying the disc space. For the L5–S1 space, it is done
    just to the right of the midline or, for L4–5, just to the left of the
  • Bluntly dissect the tissues in the
    retroperitoneal space. Often, the presacral plexus of nerves can be
    visually identified. Bluntly retract the nerves.
  • At L5–S1, the middle sacral artery and
    vein lie in a plane adherent to the anterior annulus. Coagulate them
    with bipolar cautery.
  • At L4–5, identify the iliolumbar vein
    coming off the vena cava at a 45° angle and heading inferiorly and
    laterally toward the psoas muscle. Ligate this vein, and retract the
    great vessels in a left-to-right direction to expose the annulus of the
    disc. Specially made vein retractors placed laparoscopically through
    the portals facilitate retraction of the great vessels.
The advantages of endoscopy are better visualization
with magnification of the vascular structures and rapid patient
recovery. Contraindications to the transperitoneal endoscopic technique
include multiple abdominal adhesions, previous anterior spine surgery,
and severe sacral tilt such that the L5–S1 disc space is not
accessible. It is strongly recommended that this surgery be done with a
general surgeon who has laparoscopic experience.
Endoscopic techniques utilizing retroperitoneal dissection have also been performed. Transfeldt et al. (18) and Thalgott et al. (17)
described techniques whereby a small lateral incision is made through
the oblique muscles and a balloon is placed in the retroperitoneal
space. This balloon is then inflated, dissecting free the
retroperitoneal cavity. Once the peritoneal reflection is dissected
toward the midline, an anterolateral skin incision is made to expose
the disc space.


This approach can also be carried out without balloon
dissection, using a gasless system in which the anterior abdominal wall
is lifted with a retractor system. My experience with this technique is
that it can cause abdominal wall discomfort and slower patient
recovery. In all of these endoscopic systems, the cost of disposable
equipment and the time required for surgeons to learn the procedure
must be balanced against the more traditional open or mini-open
approaches. My current approach is as follows:
  • At L5–S1 disc space, the laparoscopic
    transperitoneal approach is safe and quick and allows excellent
    visualization of the space.
  • For multilevel fusions or fusion at L4–5,
    I now prefer a minilap-type open retroperitoneal exposure. It gives
    more reliable control of the bifurcation of the great vessels at the
    L4–5 space.
Interbody fusion of the lumbar spine can be performed
with a variety of methods. Most surgeons prefer to remove the entire
disc before fusion. This requires a rectangular block-style incision of
the annulus, removal of the annulus, and removal of all disc material
including endplate cartilage through the use of a combination of
curets, rongeurs, and elevators. In general, the annulus is left intact
laterally and posteriorly. In some endoscopic techniques,
trephine-style discectomies are preferred because it is risky to use
curets and elevators in endoscopy. These techniques also preserve more
of the anterior annulus, which helps ensure cage stability.
Surgical options for fusion include iliac crest or other
autogenous bone graft, allograft bone consisting of femoral rings or
fibula, and processed allografts consisting of threaded cortical dowels
combined with autograft cancellous bone. Metallic options include the
placement of a lateral plate overlying the disc space and bone graft,
as well as devices placed within the disc space itself. These devices
include anteriorly placed threaded cylindrical cages, anteriorly placed
threaded tapered cages, laterally placed cages, lateral cages plus
lateral plates, and upright cages placed within the disc space (Fig. 146.5). Other materials that have been used include carbon fiber cages and ceramic spacers.
Figure 146.5. The use of tapered interbody fusion cages at L5–S1 permits the restoration of both height and lordosis. Preoperative (A) and postoperative (B) lateral radiographs demonstrate the lordosis obtained in a 48-year-old man with degenerative disc disease.
The principles of cage interbody fusion include the following:
  • Disc space distraction to cause tension in surrounding ligamentous structures, which increases stability
  • Preparation of the endplates to expose cancellous bone, as well as providing an endplate substrate for weight bearing
  • Provision of enough bony surface area to heal from one endplate through the bone graft to the other endplate
  • Realignment of the spine to its optimal lordotic sagittal balance
  • Production of a solid, long-term arthrodesis.
With current short-term follow-up, it appears that cage interbody fusion is successful in meeting these goals (13).


Several principles must be kept in mind, however, when
interbody fusion cages are used. Disc spaces that have not undergone
any degree of collapse are difficult to further distract. Therefore,
the tall mobile disc space may not be an ideal candidate for cage-only
fusion procedures. In addition, forceful distraction is required, and
if the endplate bone is not strong enough to resist the distractive
force, subsidence and instability will result. For this reason, do not
use cages in patients with osteoporosis. Finally, most cage systems are
designed for two cages to be implanted side by side. Although some
biomechanical studies suggest that a single cage may lead to short-term
stability, it is my feeling that there is inadequate surface area to
ensure long-term arthrodesis.
The RAY cage (Surgical Dynamics, Minneapolis, MN) and
the BAK device (Spinetech, Minneapolis, MN) were the initial threaded
interbody fusion cages (10). They have been
used with both posterior and anterior interbody fusion techniques. When
used anteriorly, these systems restore lordosis through patient
positioning and the placement of a tapered distraction plug.
  • After the disc space is distracted,
    prepare the endplate on each side of the disc by passing a reamer to
    remove endplate cartilage, bone, and disc material. Then tap each side
    and place two threaded devices.
  • Take great care, when placing cages, to identify the midline of the spine so that cages are not placed eccentrically.
  • Determine the appropriate size cages from the radiographs and preoperative templates.
  • A tapered threaded device has been
    designed that more accurately matches the anatomy of the L5–S1 disc
    space. It appears that a greater amount of lordosis can be obtained
    through the use of tapered cages with a minimal amount of endplate
    resection (16).
In general, threaded cages placed anteriorly can restore
the stability of the lumbar spine without the need for supplementary
posterior fixation. They have successfully been used in patients with
degenerative disc disease or spondylolisthesis with a degenerated disc
space. I do not recommend the use of cages alone in cases of
spondylolisthesis with a tall mobile disc space.
Lateral cages have been placed both openly and
endoscopically in the lumbar spine. Often, a single threaded
cylindrical lateral cage is utilized. Although some authors have had
success with this technique, others have shown that additional bone
grafting is necessary to provide an adequate surface area for healing.
In addition, LeHuec (11) designed a combined lateral cage and plate system to increase the rate of fusion.
Harms first introduced upright titanium mesh cages.
Typically, two upright cylinders of titanium mesh are cut to fit the
disc space and then driven into the space to provide support for the
endplate and for healing potential. Harms recommended that posterior
instrumentation be used to supplement ALIF with upright cages.
Brantigan and Steffee (2) designed upright
carbon fiber cages. While these were also met with worldwide acceptance
and a high degree of success, most authors would agree that the upright
carbon fiber cage is not stable enough to be used as a stand-alone
device. Fraser (5) recommends that posterior
fusion, as well as facet screw instrumentation, be utilized to augment
the interbody carbon fiber cage.
The use of spinal cages is evolving rapidly. Surgeons
must evaluate each patient on an individual basis to determine which
particular device is most appropriate.
Anterior lumbar surgery is never easy and requires
adequate surgical planning and preoperative preparation. An accurate
understanding of the vascular and neurologic anatomy is a requirement
for the performance of these procedures. The assistance of a general or
vascular surgeon may be necessary to obtain adequate and safe exposure.
Preoperative preparation consisting of a light bowel regime (e.g.,
GOLYTELY and Fleet enema) will make retraction of intestinal structures
easier. Preoperative examination of the patient’s abdomen and flank for
prior incisions and potential adhesions is necessary. Preoperative
evaluation of MRI or computed tomography to assess variations in the
vascular anatomy is important, as it directs which approach will used
for the portion of the spine to be fixed.
Vascular complications are certainly the most serious
and life-threatening. The incidence of injury to the aorta, vena cava,
or iliac vessels is estimated at 1% to 3% for anterior approaches (7,9).
These injuries may be life-threatening and need to be dealt with calmly
and with assistance. Obtain immediate control with tamponade. If the
procedure is being done endoscopically, immediate laparotomy is
The assistance of a vascular surgeon is highly
recommended for repair of the great vessels. The most common areas of
vascular injury are the left common iliac vein at the L5–S1 level and
the left side of the vena cava at the L4–5 level. At L4–5, there are
several small perforating veins that may come from the posterior
surface of the vena cava. They may need to be coagulated and divided
before the vena cava is retracted, to prevent their avulsion. As
mentioned earlier, control and ligation of the iliolumbar vein will
greatly assist in vena cava mobilization.
Arterial occlusion due to embolization of plaques has also been reported (18).
Anterior approaches to the lumbar spine in elderly patients are
hazardous and must be done only when absolutely necessary and with
caution. In many of these patients, the arterial system is much less


and retraction may dislodge plaques. Always do a postoperative vascular
examination, and if pulses are absent or the limb is cool, obtain an
immediate consultation with a vascular surgeon. Routine anticoagulation
has not been found to be necessary in ALIF surgery. However, if a major
vessel must be repaired, postoperative anticoagulation may be necessary.

Neurologic complications include damage to the presacral
plexus, nerve root injury, and violation of the spinal canal. As
mentioned, the parasympathetic nerves that run within the presacral
plexus are vulnerable to injury. They run along the aorta and vena cava
and then between the bifurcation as they pass distally. For work along
the L4-5 or L5–S1 disc spaces, it is mandatory that only blunt
dissection be used and that no monopolar electrocautery be used. The
incidence of retrograde ejaculation following ALIF has been estimated
to be from 1% to 4%.
It appears that the incidence of neurologic injury is
slightly higher in endoscopic procedures than in the open
retroperitoneal approach. Early in any surgeon’s experience, there is
certainly a higher incidence of retrograde ejaculation. Fortunately,
most cases of retrograde ejaculation are temporary and resolve within
4–6 months. It is assumed that they are due to stretch injury that
occurs during exposure of the disc space. Should the patient not
recover from retrograde ejaculation, urologic consultation is
The nerve roots are vulnerable after they exit the
neuroforamina and proceed toward the psoas muscle. If the midline is
not adequately evaluated and fusions are performed far lateral to the
disc space, the nerve root is vulnerable to injury. Bone grafts or
cages that are placed too laterally or too deeply may impinge on the
neuroforamen of the level above. It is imperative to use fluoroscopy at
some point to locate the midline of the disc space and maintain
orientation as to the right and left margins of the disc space.
Cages or grafts that are placed too deeply may impinge
on the spinal canal, causing cauda equina injury. Once again,
fluoroscopic control of the implantation of interbody fusion devices
should help eliminate this complication.
Abdominal-wall complications related to the approach may
occur. The epigastric vessels must be either retracted or controlled,
or a postoperative abdominal-wall hematoma may occur. Overzealous
retraction of the rectus abdominis may lead to a stretch injury and
cause weakness of the abdominal wall. During a flank approach, repair
each layer independently to prevent weakening of the abdominal wall.
Pseudarthrosis of an ALIF may occur. Although the
incidence of a pseudarthrosis after a 360° fusion is performed is
exceedingly low, ALIF alone does carry a risk of pseudarthrosis. With
the use of only iliac crest autograft, the pseudarthrosis rate was
estimated at 30% to 35% (4,7). Femoral allograft rings have shown to have a pseudarthrosis rate approaching 20% (12). Threaded cortical bone dowels appear to have a much lower pseudarthrosis rate, but follow-up is too short to be conclusive.
Threaded interbody fusion cages have been reported to have a 90% fusion rate in the early BAK and RAY cage studies (10).
Recent reports show a higher pseudarthrosis rate, however, which may be
secondary to poor surgical indications or poor surgical technique (15).
Should pseudarthrosis occur and the cages or bone dowels remain in an
acceptable position, I recommend proceeding with a posterior
instrumented fusion at that level. It will often resolve the patient’s
symptoms and may lead to healing of the interbody fusion. If a cage or
bone dowel should migrate and cause neurologic symptoms, it should be
removed at the time of revision surgery. Revision anterior interbody
surgery is dangerous and should be approached with caution. Vascular
structures often become adherent to the previously operated disc space,
and the presence of a vascular surgeon is necessary for these
challenging cases.
Finally, the incidence of persistent pain after ALIF has
been estimated to be 10% to 20%. The exact cause is unknown and may be
related to patient selection. This fact alone indicates that the
treatment of low-back pain with interbody fusion is evolving. Keep in
mind that the exact cause of each patient’s low-back pain may be
The use of ALIF techniques provides numerous advantages.
Restoration of the weight-bearing column, provision of a greater
surface for fusion to occur, and the ability to recreate the normal
sagittal position of the spine are among its greatest advantages. If
complications should occur, however, many of these advantages are lost.
To obtain a high clinical and radiographic success rate, strict
adherence to the details of the surgical approach and the fusion
technique are required.
Each reference is categorized according to the following
scheme: *, classic article; #, review article; !, basic research
article; and +, clinical results/outcome study.
+ 1. Blumenthal SL, Baker J, Dossett A, Selby DK. The Role of Anterior Lumbar Fusion for Internal Disc Disruption. Spine 1988;13:566.


+ 2. Brantigan
JW, Steffee AD. A Carbon Fiber Implant to Aid Interbody Lumbar Fusion:
Two-year Clinical Results in the First 26 Patients. Spine 1993;18:2106.
+ 3. Crock HV. Internal Disc Disruption: A Challenge to Disc Prolapse Fifty Years on. Spine 1986;11:650.
+ 4. Dennis S, Watkins R, Landaker S, et al. Comparison of Disc Space Heights after Anterior Lumbar Interbody Fusion. Spine 1989;18:876.
+ 5. Fraser R. Personal communication.
+ 6. Gill K, Blumenthal SL. Functional Results after Anterior Lumbar Fusion at L5-S1 in Patients with Normal and Abnormal MRI Scans. Spine 1992;17:940.
+ 7. Goldner
J, Urbaniak J, McCollum D. Anterior Disc Excision and Interbody Spinal
Fusion for Chronic Low Back Pain. Orthop Clin North Am 1971;2:544.
+ 8. Knox BD, Chapman TM. The Anterior Lumbar Interbody Fusion for Discogram Concordant Pain. J Spinal Disord 1993;6:242.
+ 9. Kozak JA, Heilman AE, O’Brien JP. Anterior Lumbar Fusion Options: Technique and Graft Materials. Clin Orthop 1994;300:45.
+ 10. Kuslich
SD, Dowdle JA. Two-year Follow-up Results of an Interbody Fusion
Device. Presented at the Ninth Annual Meeting of the North American
Spine Society, Minneapolis, MN, October 19–21, 1994.
+ 11. LeHuec
JC. Lateral Cage Endoscopic Fusion. Presented at the Thirteenth Annual
Meeting of the North American Spine Society, San Francisco, CA, October
27, 1998.
+ 12. Loguidice VA, Johnson RG, Guyer RD, et al. Anterior Lumbar Interbody Fusion. Spine 1988;13:366.
+ 13. Mahvi DM, Zdeblick TA. A Prospective Study of Laparoscopic Spinal Fusion. Ann Surg 1996;224:85.
+ 14. Modic MT, Steinberg PM, Ross JS, et al. Degenerative Disc Disease: Assessment of Changes in Vertebral Marrow. Radiology 1988;166:193.
+ 15. O’Dowd
JK, Lam K, Mulholland RC, BAK Cage: Nottingham Results. Presented at
the Thirteenth Annual Meeting of the North American Spine Society, San
Francisco, CA, October 28, 1998.
+ 16. Orr
RD, Andres B, Checovich M, Zdeblick TA. Results of Anterior Spinal
Fusion with the Tapered Interbody Fusion (TIF) Device. Presented at the
Thirteenth Annual Meeting of the North American Spine Society, San
Francisco, CA, October 28, 1998.
+ 17. Thalgott
JS, Chin AK, Ameriks JA. Minimally Invasive 360° Fusion. Presented at
the Thirteenth Annual Meeting of the North American Spine Society, San
Francisco, CA, October 28, 1998.
+ 18. Transfeldt
E, Escobar G, Garvey T. Complications of View-assisted Spine Surgery.
Presented at the Thirteenth Annual Meeting of the North American Spine
Society, San Francisco, CA, October 28, 1998.
+ 19. Zdeblick
TA. A Prospective Randomized Study of the Surgical Treatment of L5-S1
Degenerative Disc Disease. Presented at the Tenth Annual Meeting of the
North American Spine Society, Washington, DC, October 20, 1995.
+ 20. Zuckerman JF, Zdeblick TA, Bailey SA, et al. Instrumented Laparoscopic Spinal Fusion: Preliminary Results. Spine 1995;20:2029.

This website uses cookies to improve your experience. We'll assume you're ok with this, but you can opt-out if you wish. Accept Read More
