Acromioclavicular and Sternoclavicular Joint Injuries
ACROMIOCLAVICULAR (AC) JOINT INJURY
Epidemiology
  • Most common in the second decade of life, associated with contact athletic activities
  • More common in males (5 to 10:1)
Anatomy (Fig. 12.1)
  • The AC joint is a diarthrodial joint,
    with fibrocartilage-covered articular surfaces, located between the
    lateral end of the clavicle and the medial acromion.
  • Inclination of the plane of the joint may be vertical or inclined medially 50 degrees.
  • The AC ligaments (anterior, posterior,
    superior, inferior) strengthen the thin capsule. Fibers of the deltoid
    and trapezius muscles blend with the superior AC ligament to strengthen
    the joint.
  • The AC joint has minimal mobility through
    a meniscoid, intraarticular disc that demonstrates an age-dependent
    degeneration until it is essentially nonfunctional beyond the fourth
    decade.
  • The horizontal stability of the AC joint
    is conferred by the AC ligaments, whereas the vertical stability is
    maintained by the coracoclavicular ligaments.
  • The average coracoclavicular distance is 1.1 to 1.3 cm.
Mechanism of Injury
  • Direct: This is the most common
    mechanism, resulting from a fall onto the shoulder with the arm
    adducted, driving the acromion medial and inferior.
  • Indirect: This is caused by a fall onto
    an outstretched hand with force transmission through the humeral head
    and into the AC articulation (Fig. 12.2).
Associated Fractures and Injuries
  • Fractures: clavicle, acromion process, and coracoid process
  • Pneumothorax or pulmonary contusion with type VI AC separations
Clinical Evaluation
  • The patient should be examined while in
    the standing or sitting position with the upper extremity in a
    dependent position, thus stressing the AC joint and emphasizing
    deformity.
  • The characteristic anatomic feature is a downward sag of the shoulder and arm.
  • A standard shoulder examination should be
    performed, including assessment of neurovascular status and possible
    associated upper extremity injuries. Inspection may reveal an apparent

    P.128


    step-off
    deformity of the injured AC joint, with possible tenting of the skin
    overlying the distal clavicle. Range of shoulder motion may be limited
    by pain. Tenderness may be elicited over the AC joint.

    Figure 12.1. Normal anatomy of the acromioclavicular joint.

    (From Bucholz RW, Heckman JD, Court-Brown C, et al., eds. Rockwood and Green’s Fractures in Adults, 6th ed. Philadelphia: Lippincott Williams & Wilkins, 2006.)
Radiographic Evaluation
  • A standard trauma series of the shoulder
    (anteroposterior [AP], scapular-Y, and axillary views) is usually
    sufficient for the recognition of AC injury.

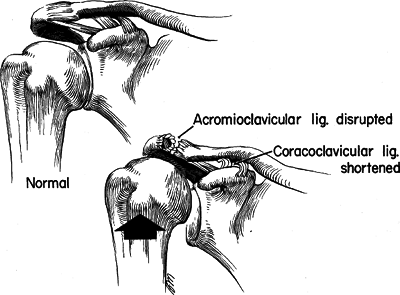

    Figure
    12.2. An indirect force applied up through the upper extremity (e.g., a
    fall on the outstretched hand) may superiorly displace the acromion
    from the clavicle, thus producing injury to the acromioclavicular
    ligaments. However, stress is not placed on the coracoclavicular
    ligaments.

    (From Bucholz RW, Heckman JD, Court-Brown C, et al., eds. Rockwood and Green’s Fractures in Adults, 6th ed. Philadelphia: Lippincott Williams & Wilkins, 2006.)

    • P.129


  • Ligamentous injury to the
    coracoclavicular joints may be assessed via stress radiographs, in
    which weights (10 to 15 lb) are strapped to the wrists, and an AP
    radiograph is taken of both shoulders to compare coracoclavicular
    distances. This can differentiate grade III AC separations from partial
    grade I to II injuries.
Classification
  • This injury is classified depending on the degree and direction of displacement of the distal clavicle (Table 12.1 and Fig. 12.3).
    Table 12.1. Classification of acromioclavicular (AC) joint injury
    Type Anatomy Clinical Examination Radiographic Examination
    I Sprain of the AC ligament AC joint tenderness, minimal pain with arm motion, no pain in coracoclavicular interspace No abnormality
    II AC ligament tear with joint disruption, coracoclavicular ligaments sprained Distal clavicle slightly superior to acromion and mobile to palpation; tenderness in the coracoclavicular space Slight elevation of the distal
    end of the clavicle; AC joint widening. Stress films show
    coracoclavicular space unchanged from normal shoulder.
    III AC and coracoclavicular
    ligaments torn with AC joint dislocation. The deltoid and trapezius
    muscles are usually detached from the distal clavicle.    		 The upper extremity and distal
    fragment are depressed and the distal end of the proximal fragment may
    tent the skin. The AC joint is tender, and coracoclavicular widening is
    evident.    		 Radiographs demonstrate the
    distal clavicle superior to the medial border of the acromion; stress
    views reveal a widened coracoclavicular interspace 25% to 100% greater
    than the normal side.
    IV Distal clavicle displaced
    posteriorly into or through the trapezius. The deltoid and trapezius
    muscles are detached from the distal clavicle.    		 There is more pain than in type III; the distal clavicle is displaced posteriorly away from the acromion. Axillary radiograph or computed tomography scan demonstrates posterior displacement of the distal clavicle.
    V Distal clavicle grossly and
    severely displaced superiorly (>100%). The deltoid and trapezius
    muscles are detached from the distal clavicle.    		 Typically associated with tenting of the skin Radiographs demonstrate the coracoclavicular interspace to be 100% to 300% greater than the normal side.
    VI The AC joint is dislocated,
    with the clavicle displaced inferior to the acromion or the coracoid;
    the coracoclavicular interspace is decreased compared with normal. The
    deltoid and trapezius muscles are detached from the distal clavicle.    		 The shoulder has a flat
    appearance with a prominent acromion; associated clavicle and upper rib
    fractures and brachial plexus injuries result from high-energy trauma.    		 One of two types of inferior dislocation: subacromial or subcoracoid
Treatment

Type I: Rest for 7 to 10 days, ice packs, sling. Refrain from full activity until painless, full range of motion (2 weeks).
Type II: Sling for 1 to 2 weeks, gentle
range of motion as soon as possible. Refrain from heavy activity for 6
weeks. More than 50% of patients with type I and II injuries remain
symptomatic at long-term follow-up.
Type III: For inactive, nonlaboring, or
recreational athletic patients, especially for the nondominant arm,
nonoperative treatment is indicated: sling, early range of motion,
strengthening, and acceptance of deformity. Younger, more active
patients with more severe degrees of displacement and laborers who use
their upper extremity above the horizontal plane may benefit from
operative stabilization. Repair is generally avoided in contact
athletes because of the risk of reinjury.
Type IV: Open reduction and surgical repair of the coracoclavicular ligaments are performed for vertical stability.
Type V: Open reduction and surgical repair of the coracoclavicular ligaments are indicated.
Type VI: Open reduction and surgical repair of the coracoclavicular ligaments are indicated.
Complications
  • Coracoclavicular ossification: not associated with increased disability
  • Distal clavicle osteolysis: associated with chronic dull ache and weakness
  • AC arthritis
STERNOCLAVICULAR (SC) JOINT INJURY
Epidemiology
  • Injuries to the SC joint are rare; Cave
    et al. reported that of 1,603 shoulder girdle dislocations, only 3%
    were SC, with 85% glenohumeral and 12% AC dislocations.
Anatomy (Fig. 12.4)
  • The SC joint is a diarthrodial joint,
    representing the only true articulation between the upper extremity and
    the axial skeleton.
  • The articular surface of the clavicle is much larger than that of the sternum; both are covered with fibrocartilage. Less than

    P.130



    P.131



    P.132



    half of the medial clavicle articulates with the sternum; thus, the SC
    joint has the distinction of having the least amount of bony stability
    of the major joints of the body.

    Figure
    12.3. Classification of ligamentous injuries to the acromioclavicular
    (AC) joint. Top left: In the Type I injury, a mild force applied to the
    point of the shoulder does not disrupt either the AC or the
    coracoclavicular ligaments. Top right: A moderate to heavy force
    applied to the point of the shoulder will disrupt the AC ligaments, but
    the coracoclavicular ligaments remain intact (Type II). Center left:
    When a severe force is applied to the point of the shoulder, both the
    AC and the coracoclavicular ligaments are disrupted (Type III). Center
    right: In a Type IV injury, not only are the ligaments disrupted, but
    also the distal end of the clavicle is displaced posteriorly into or
    through the trapezius muscle. Bottom left: A violent force applied to
    the point of the shoulder not only ruptures the AC and coracoclavicular
    ligaments but also disrupts the muscle attachments and creates a major
    separation between the clavicle and the acromion (Type V). Bottom
    right: This is an inferior dislocation of the distal clavicle in which
    the clavicle is inferior to the coracoid process and posterior to the
    biceps and coracobrachialis tendons. The AC and coracoclavicular
    ligaments are also disrupted (Type VI).

    (From Bucholz RW, Heckman JD, Court-Brown C, et al., eds. Rockwood and Green’s Fractures in Adults, 6th ed. Philadelphia: Lippincott Williams & Wilkins, 2006.)
    Figure

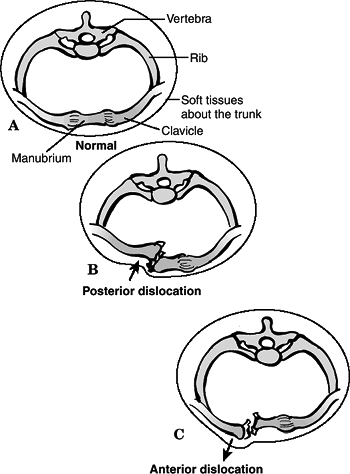

    12.4. Cross sections through the thorax at the level of the
    sternoclavicular joint. (A) Normal anatomic relations. (B) Posterior
    dislocation of the sternoclavicular joint. (C) Anterior dislocation of
    the sternoclavicular joint.

    (From Bucholz RW, Heckman JD, Court-Brown C, et al., eds. Rockwood and Green’s Fractures in Adults, 6th ed. Philadelphia: Lippincott Williams & Wilkins, 2006.)
  • Joint integrity is derived from the
    saddle-like configuration of the joint (convex vertically and concave
    anteroposteriorly), as well as from surrounding ligaments:
    • The intraarticular disc ligament is a checkrein against medial displacement of the clavicle.
    • The extraarticular costoclavicular ligament resists rotation and medial-lateral displacement.
    • The interclavicular ligament helps to maintain shoulder poise.
    • The capsular ligament (anterior, posterior) prevents superior displacement of the medial clavicle.
  • Range of motion is 35 degrees of superior
    elevation, 35 degrees of combined AP motion, 50 degrees of rotation
    around its long axis.
  • The medial clavicle physis is the last
    physis to close. It ossifies at 20 years and fuses with the shaft at 25
    to 30 years. Therefore,

    P.133



    many supposed SC joint dislocations are actually physeal injuries.

Figure
12.5. Mechanisms that produce anterior or posterior dislocations of the
sternoclavicular joint. (A) If the patient is lying on the ground and
compression force is applied to the posterolateral aspect of the
shoulder, the medial end of the clavicle will be displaced posteriorly.
(B) When the lateral compression force is directed from the anterior
position, the medial end of the clavicle is dislocated anteriorly.

(From Bucholz RW, Heckman JD, Court-Brown C, et al., eds. Rockwood and Green’s Fractures in Adults, 6th ed. Philadelphia: Lippincott Williams & Wilkins, 2006.)
Mechanism of Injury (Fig. 12.5)
  • Direct: Force applied to the anteromedial
    aspect of the clavicle forces the clavicle posteriorly into the
    mediastinum to produce posterior dislocation. This may occur when an
    athlete is in the supine position and another athlete falls on him or
    her, when an individual is run over by a vehicle, or when an individual
    is pinned against a wall by a vehicle.
  • Indirect: Force can be applied indirectly
    to the SC joint from the anterolateral (producing anterior SC
    dislocation) or posterolateral (producing posterior SC dislocation)
    aspects of the shoulder. This is most commonly seen in football
    “pileups,” in which an athlete is lying obliquely on his shoulder and
    force is applied with the individual unable to change position.
Clinical Evaluation
  • The patient typically presents supporting
    the affected extremity across the trunk with the contralateral,
    uninjured arm. The patient’s head may be tilted toward the side of
    injury to decrease stress across the joint, and the patient may be
    unwilling to place the affected scapula flat on the examination table.
  • Swelling, tenderness, and painful range
    of shoulder motion are usually present, with a variable change of the
    medial clavicular prominence, depending on the degree and direction of
    injury.
  • Neurovascular status must be assessed,
    because the brachial plexus and major vascular structures are in the
    immediate vicinity of the medial clavicle.
  • With posterior dislocations, venous
    engorgement of the ipsilateral extremity, shortness of breath, painful
    inspiration, difficulty swallowing, and a choking sensation may be
    present.

    P.134



    The chest must be auscultated to ensure bilaterally symmetric breath sounds.

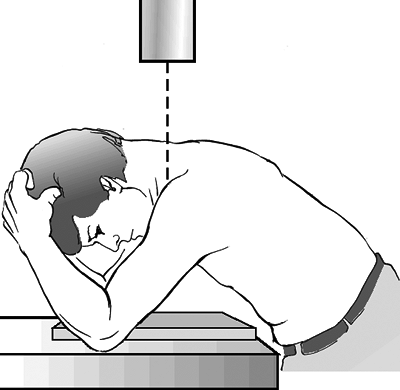

Figure 12.6. Hobbs view: positioning of the patient for x-ray evaluation of the sternoclavicular joint, as recommended by Hobbs.

(Modified from Hobbs DW. Sternoclavicular joint: a new axial radiographic view. Radiology 1968;90:801–802; in Bucholz RW, Heckman JD, Court-Brown C, et al., eds. Rockwood and Green’s Fractures in Adults, 6th ed. Philadelphia: Lippincott Williams & Wilkins, 2006.)
Radiographic Evaluation
  • AP chest radiographs typically
    demonstrate asymmetry of the clavicles that should prompt further
    radiographic evaluation. This view should be scrutinized for the
    presence of pneumothorax if the patient presents with breathing
    complaints.
  • Hobbs view: In this 90-degree
    cephalocaudal lateral view, the patient leans over the plate, and the
    radiographic beam is angled behind the neck (Fig. 12.6).
  • Serendipity view: This 40-degree cephalic
    tilt view is aimed at the manubrium. With an anterior dislocation, the
    medial clavicle lies above the interclavicular line; with a posterior
    dislocation, the medial clavicle lies below this line (Fig. 12.7).
  • Computed tomography (CT) scan: This is
    the best technique to evaluate injuries to the SC joint. CT is able to
    distinguish fractures of the medial clavicle from dislocation as well
    as delineate minor subluxations that would otherwise go unrecognized.
Classification
Anatomic
  • Anterior dislocation: more common
  • Posterior dislocation

P.135


Etiologic
Figure
12.7. Serendipity view: positioning of the patient to take the
“serendipity” view of the sternoclavicular joints. The x-ray tube is
tilted 40 degrees from the vertical position and is aimed directly at
the manubrium. The nongrid cassette should be large enough to receive
the projected images of the medial halves of both clavicles. In
children, the tube distance from the patient should be 45 inches; in
thicker-chested adults, the distance should be 60 inches.

(From Bucholz RW, Heckman JD, Court-Brown C, et al., eds. Rockwood and Green’s Fractures in Adults, 6th ed. Philadelphia: Lippincott Williams & Wilkins, 2006.)
  • Sprain or subluxation
    • Mild: joint stable, ligamentous integrity maintained
    • Moderate: subluxation, with partial ligamentous disruption
    • Severe: unstable joint, with complete ligamentous compromise
  • Acute dislocation: complete ligamentous disruption with frank translation of the medial clavicle
  • Recurrent dislocation: rare
  • Unreduced dislocation
  • Atraumatic: may occur with spontaneous
    dislocation, developmental (congenital) dislocation, osteoarthritis,
    condensing osteitis of the medial clavicle, SC hyperostosis, or
    infection
Treatment
  • Mild sprain: Ice is indicated for the
    first 24 hours with sling immobilization for 3 to 4 days and a gradual
    return to normal activities as tolerated.
  • Moderate sprain or subluxation: Ice is
    indicated for the first 24 hours with a clavicle strap, sling and
    swathe, or figure-of-eight bandage for 1 week, then sling
    immobilization for 4 to 6 weeks.
  • Severe sprain or dislocation (Fig. 12.8).
    • Anterior: As for nonoperative treatment,
      it is controversial whether one should attempt closed reduction because
      it is usually unstable; a sling is used for comfort. Closed reduction
      may be accomplished using general anesthesia, or narcotics and muscle
      relaxants for the stoic patient. The patient is placed

      P.136


      supine
      with a roll between the scapulae. Direct, posteriorly directed pressure
      usually results in reduction. Postreduction care consists of a clavicle
      strap, sling and swathe, or figure-of-eight bandage for 4 to 6 weeks.
      Some advocate a bulky anterior dressing with elastic tape to maintain
      reduction.

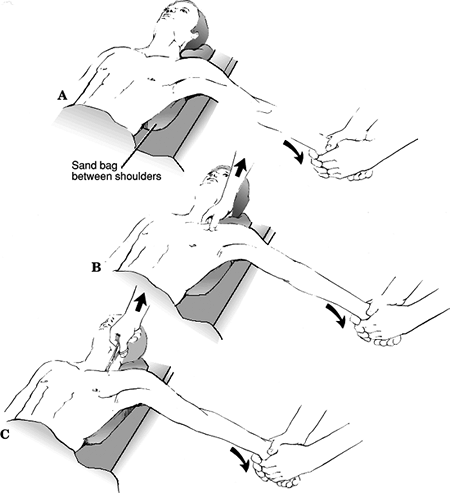

      Figure
      12.8. Technique for closed reduction of the sternoclavicular joint. (A)
      The patient is positioned supine with a sandbag placed between the two
      shoulders. Traction is then applied to the arm against countertraction
      in an abducted and slightly extended position. In anterior
      dislocations, direct pressure over the medial end of the clavicle may
      reduce the joint. (B) In posterior dislocations, in addition to the
      traction it may be necessary to manipulate the medial end of the
      clavicle with the fingers to dislodge the clavicle from behind the
      manubrium. (C) In stubborn posterior dislocations, it may be necessary
      to prepare the medial end of the clavicle in sterile fashion and to use
      a towel clip to grasp around the medial clavicle to lift it back into
      position.

      (From Bucholz RW, Heckman JD, Court-Brown C, et al., eds. Rockwood and Green’s Fractures in Adults, 6th ed. Philadelphia: Lippincott Williams & Wilkins, 2006.)
    • Posterior: A careful history and physical
      examination are necessary to rule out associated pulmonary or
      neurovascular problems. Prompt closed or open reduction is indicated,
      usually under general anesthesia. Closed reduction is often successful
      and remains stable. The patient is placed supine

      P.137


      with
      a roll between the scapulae. Closed reduction may be obtained with
      traction with the arm in abduction and extension. Anteriorly directed
      traction on the clavicle with a towel clip may be required. A clavicle
      strap, sling and swathe, or figure-of-eight bandage is used for
      immobilization for 4 to 6 weeks. A general or thoracic surgeon should
      be available in the event that the major underlying neurovascular
      structures are inadvertently damaged.

  • Medial physeal injury: Closed reduction
    is usually successful, with postreduction care consisting of a clavicle
    strap, sling and swathe, or figure-of-eight bandage immobilization for
    4 to 6 weeks.
  • Operative management of SC dislocation
    may include fixation of the medial clavicle to the sternum using fascia
    lata, subclavius tendon, or suture, osteotomy of the medial clavicle,
    or resection of the medial clavicle. The use of Kirschner wires or
    Steinmann pins is discouraged, because migration of hardware may occur.
Complications
  • Poor cosmesis is the most common complication with patients complaining of an enlarged medial prominence.
  • Complications are more common with
    posterior dislocations and reflect the proximity of the medial clavicle
    to mediastinal and neurovascular structures. The complication rate has
    been reported to be as high as 25% with posterior dislocation.
    Complications include the following:
    • Pneumothorax
    • Laceration of the superior vena cava
    • Venous congestion in the neck
    • Esophageal rupture
    • Subclavian artery compression
    • Carotid artery compression
    • Voice changes
    • Severe thoracic outlet syndrome

Continue Reading
You might also like More from author

This website uses cookies to improve your experience. We'll assume you're ok with this, but you can opt-out if you wish. Accept Read More
