Nerve Injuries
Our peripheral nervous system is our mediator to, and
interpreter of, our external environment. This system, along with the
optic nervous system, makes it possible for us to not only survive, but
to flourish in our environment.
This chapter will discuss the evaluation and treatment
of acute nerve injuries as seen in the hand, wrist, and forearm, and
will emphasize the diagnosis of acute nerve injuries and the management
of commonly encountered injuries of the three major upper extremity
nerves and their branches.
This chapter will also describe the classic hand
deformities, and findings seen following nerve injuries, repair
techniques, and some of the tendon transfers used to treat irreparable
nerve injuries.
The discussion of nerve injuries begins with the pertinent anatomy and physiology of nerve injury and repair.
Pertinent Anatomy
Gross Anatomy of the Nerves of the Upper Extremity
The anatomic configuration and relationships of the median, ulnar, and radial nerves in the upper extremity are depicted in Figure 13-1.
These figures represent the most usual or common arrangement of the
nerves, and do not depict anatomic variations. The distribution of the
cutaneous nerves in the upper extremity given in Figure 13-2 and Figure 13-3 indicates the most common distribution of the cutaneous branches of the three major nerves in the hand.
Peripheral Nerves
Neural Components
The peripheral nerves contain motor, sensory, and
autonomic fibers. The motor fibers originate from the motor neurons in
the anterior horn of the spinal cord. The sensory fibers originate from
the sensory neurons in the dorsal root ganglia. The autonomic fibers
are either preganglionic, arising from the neurons in the
brainstem/spinal cord, or postganglionic, arising from the neurons in
paravertebral ganglia.
Spatial Organization
There is a significant degree of topographical
localization in the peripheral nerve trunk that correlates to distal
function. Motor neurons serving a single muscle are found grouped
together within the anterior horn of the spinal cord.
Macroscopic and Microscopic Anatomy
Figure 13-4 illustrates the
macroscopic anatomy of a typical peripheral nerve as seen in the upper
extremity. The following descriptive terms are useful anatomic points
of understanding about nerve injury and repair.
The Three Concentric Layers
Epineurium is a loose, collagenous connective tissue
that represents the outermost layer of the nerve as well as an internal
investing layer that surrounds fascicles and groups of fascicles. The
epineurium is an elongation of the dural sleeve of the spinal nerve
roots, and is divided into external and internal layers. The external
epineurium surrounds the peripheral nerve, and anchors blood vessels
entering from the surrounding tissue. The internal epineurium is
present between fascicles, and cushions them from external force. It
also contains blood vessels. The percentage of nerve cross-sectional
area represented by the epineurium may vary, and greater amounts may be
found in the nerves in the region of joints and in more exposed
locations. This layer may thicken or enlarge in response to trauma, and
may represent a large portion of the scar seen after nerve injury. The
epineurium is surrounded by a loose collection of areolar tissue that
under normal circumstances (absence of extrinsic scar tissue) accounts
for the longitudinal excursion of the nerve and the avoidance of
traction injuries.
The perineurium surrounds individual fascicles, and is
composed of up to 10 concentric lamellae of flattened cells, with
prominent basement membranes that are linked tightly together.
Longitudinally and obliquely oriented collagen fibers are present
between these lamellae. The perineurium functions as an extension of
the blood-brain barrier, controlling the intraneural ionic environment
by limiting diffusion, blocking the spread of infection to the
endoneurium, and maintaining a slightly positive intrafascicular
pressure. The perineurium surrounds each fascicle





provides a diffusion barrier. This layer maintains a positive pressure
gradient that is manifested by the bulging fascicles of a freshly cut

Figure 13-1
The configuration and anatomic relationships of the three major nerves
of the upper extremity, and their branches showing distribution and
muscles innervated.
Figure 13-2 The cutaneous nerves of the upper extremity of the (A) anterior and (B) posterior aspects of the upper extremity.
The endoneurium is the collagenous tissue that acts as
“packing” among axons within the perineurium. The endoneurium
participates in formation of the Schwann cell tube that contains the
myelinated axon and its associated Schwann cells. Schwann cells form
membranous expansions around axons, and form the myelin sheath that, in
oversimplified terms, represents the “insulation” around the axon and
promotes efficient conduction and velocity of action potentials. Large
myelinated axons have two layers of collagen (endoneurium); the outer
is longitudinally oriented and the inner is arranged randomly and is
associated with reticulin. Small myelinated axons have only the outer,
longitudinal layer. The Schwann cell basement membrane forms the inner
lining of this tubular structure. Endoneurial collagen resists
longitudinal stress, and the Schwann cell participates in a complex
homeostatic relationship with the axon.
The Fascicle
The fascicle is the smallest unit of nerve tissue than
can be manipulated surgically; it contains axons enclosed by
endoneurium and is in turn wrapped in perineurium (Figure 13-4).
The number of fascicles in a given nerve may vary in number and size.
Interconnections may occur between fascicles. Fascicular group mapping
has permitted more accurate reapproximation of nerves, and
identification of these fascicular groups as to size and axial
orientation may allow the surgeon to more appropriately reconnect or
join severed nerves either primarily or with nerve grafts.
Vascular Supply
Peripheral nerves are very vascular, and segmental
nutrient vessels join a plexus of predominantly longitudinal vessels in
the epineurium. These, in turn, supply a second plexus that lies among
the lamellae of the perineurium. Perineurial vessels may travel for
long distances before entering the endoneurium. This longitudinal
plexus of blood vessels allows a nerve to be mobilized for a
significant distance without ischemic compromise.

Figure 13-3 The terminal (cutaneous) distribution of the median, ulnar, and radial nerves in the palm and back of the hand.

Figure 13-4
Typical cross-sectional anatomy of a peripheral nerve showing the nerve
axons surrounded by the investing layers of endoneurium, perineurium,
and epineurium. Note the grossly visible vascular network in the
perineurium (see text for details).
The Neuron
The neuron is the basic functional and morphological
unit of the peripheral nerve. Each neuron consists of a cell body with
cytoplasmic extensions, called dendrites, and an axon (Figure 13-5).
The cell body contains a single nucleus with one or more
nucleoli, ribosomes, endoplasmic reticulum, and the Golgi apparatus. It
synthesizes structural components of the neuron.
Figure 13-5
The basic functional unit of the peripheral nerve is the neuron, which
consists of a cell body, an axon, and dendrites. The axon and dendrites
are protoplasmic extensions of the cell body. Some axons are
unmyelinated and some are myelinated.
The axon is a special cylindrical extension arising from
the neuron at a confluence of cytoplasm called the axonal hillock. The
axon contains axoplasm, microtubules, and neurofilaments surrounded by
the axolemma, which serves as the surface membrane. The axon functions
as a means of bidirectional axonal transport and nerve conduction.
In general, Schwann cells surround all axons—but only
the larger axons have a myelin sheath. In larger myelinated axons,
Schwann cells are present along the entire length, and are said to be
the glial cells of the peripheral nervous system. The myelinated axon
has characteristic indentations at uniform intervals; these are called
the nodes of Ranvier and are myelin-free
zones that facilitate ionic exchange and propagation of electric
conduction. The diameter of the axon is one factor that may determine
the presence or absence of myelin. The size of the axon may determine
the thickness of the myelin layer. Motor fibers have thicker myelin
sheaths than sensory fibers.
In an unmyelinated nerve, each Schwann cell surrounds
several small axons, and in a myelinated nerve, Schwann cells surround
a single axon. The myelin sheath is a complex proteophospholipid that
promotes conduction efficiency and the velocity of action potentials.
Myelinated axons have four distinctive regions: the node of Ranvier, paranode, juxtaparanode, and internode.
Each of these zones is characterized by a specific set of axonal
proteins. Voltage-gated sodium channels are clustered at the nodes,
whereas potassium channels are concentrated at juxtaparanodal regions.

Sensory Receptors
There are three common types of mechanoreceptors, and their roles in sensory perception are noted as follows.
Merkel Cell
The Merkel cell is a disc-shaped cell that is clustered
around the sweat duct. This complex consists of several receptors
served by the branches of a single axon.
This receptor is slowly adapting,
and is very sensitive to the perpendicular indentation of the skin. The
Merkel cell has a well-circumscribed receptive field of 2 to 4 mm, and
responds to a small area of skin pressure, such as static 2-point discrimination.
Meissner Corpuscle
The Meissner corpuscles are located in the superficial
dermis, and are most highly developed in the finger pulp or pads. They
are egg-shaped lamellar structures situated closely below the dermis at
the sides of the intermediate ridge, and are anchored by thin strands
of connective tissue.
These receptors are innervated by several terminal axons, and are rapidly adapting. They provide information about rapidly fluctuating mechanical forces acting on the palmar surfaces of the hands and feet.
They fire briefly at the start of stimulus and at times
at the end, and respond to flutter vibration at 30 cps. The Meissner
corpuscle is well equipped for analysis of motion, such as moving 2-point discrimination.
Pacinian Corpuscle
The Pacinian corpuscle lies in the subcutaneous tissue
of the palmar and plantar surfaces, and is visible to the naked eye; it
reaches up to 2 mm in length.
A single axon innervates the corpuscle and is surrounded by 40 to 60 concentric lamellae.
The Pacinian corpuscle is rapidly adapting, and is especially sensitive to vibration with a receptive field that is up to several centimeters in diameter.
Table 13-1 Comparison of Sunderland and Seddon Classification of Nerve Injuries
Author Descriptive Term Nature of Injury/Neuropathology
Sunderland First Degree Injury Demyelinating injury with a temporary conduction block
Seddon Neurapraxia
Second Degree Injury
Distal degeneration of the injured axon but with almost always complete regeneration due to intact endoneurium
Third Degree Injury
Sunderlands third degree
injury is less severe than the neurotmesis category of Seddon since the
perineurial layer is intact. Regeneration occurs but is incomplete due
to endoneurial scarring and loss of end-organ specificity within the
Sunderland Fourth Degree Injury Axon, endoneurium, perineurium
are disrupted with extensive scarring that blocks axonal regeneration
and often results in a neuroma-in-continuity.
Sunderland Fifth Degree Injury Severed nerve trunk without possibility of spontaneous regeneration.
Physiology of Nerve Injury and Repair
Classification of Injury
Sir Herbert Seddon and Sir Sydney Sunderland both
devised a classification system of nerve injury based on degree of
disruption of the internal structures of the peripheral nerve. These
systems are simple and widely used today because of their correlation
to the degree of nerve injury and thus provide a useful basis for
comparison of results with various treatments and lend themselves, to
some degree, as prognostic factors following nerve injuries. Sunderland
noted that nerve injuries may be represented by more than one degree of
injury, and that a nerve injury may not always fall into a single
category. Table 13-1 compares these two classification systems
Degeneration and Regeneration
Events in the Neuron and Proximal Axon Following Nerve Injury
The following sequence represents a cursory summary of the events that may occur in the neuron and proximal axon after axotomy.
  • Signals from the periphery turn on the
    genes in the neuron for successful reinnervation. The neuron receives
    specific signals from the axonal injury site, which in turn prime the
    cell to initiate the process of degeneration and subsequent
  • The first phase
    is characterized by the arrival of action potentials generated at the
    injury site. This burst of action potentials opens gated calcium
    channels, causing an influx of calcium ions that activate
    calcium-sensitive protein kinases. These kinases regulate various
    transcription factors.
  • In the second phase,
    protein kinases and other intrinsic constituents activated at the
    injury site are transported retrograde, promoting synthesis of proteins
    required for


    regeneration. Growth-specific proteins are synthesized, and are transported distally.

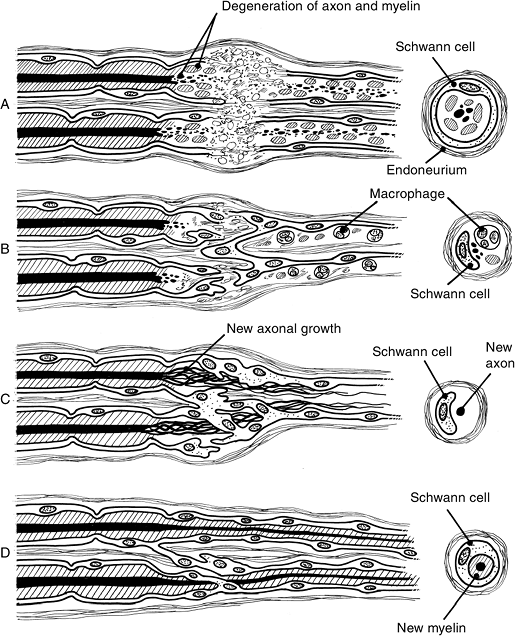

    Figure 13-6 Wallerian degeneration and regeneration. A. Breakdown of axoplasm and cytoskeletons into granular, ovoid particles. B. Macrophages appear, and in 2 to 3 days they phagocytize and clear away these particles. C. Schwann cells proliferate by mitosis, and form a line known as Bunger’s band. D.
    Schwann cells wrap around and myelinate newly regenerating axons.
    (After Chiu DTW, Choi M, Dellon AL. Nerve Physiology and Repair. In:
    Trumble TE, ed. Hand surgery update 3: hand, elbow & shoulder.
    Rosemont, IL: American Society for Surgery of the Hand, 2003:287–297).
  • The third phase
    is mediated by neurotrophic factors, growth-promoting surface
    molecules, and cytokines released by the extrinsic cells, such as the
    macrophages and Schwann cells at the injury site. These are then taken
    up by the injured axon and transported back to the neuron.
  • The last phase marks the end of regeneration. Growth factors produced by the target organ arrive.
Axon Sprouting
Within hours of an injury, so-called collateral sprouts
begin to develop from the most distal node of Ranvier proximal to the
site of injury. The sprout formation site may be close to the injury
site (in a sharp transection) or farther away (in an
avulsion/crush-type injury). Terminal sprouts arise from the tip of the surviving axon.
Events in the Distal Axon Following Nerve Injury
Wallerian Degeneration
Wallerian degeneration is a breakdown and cleanup process that occurs in the distal axon in response to nerve injury (Figure 13-6). It is summarized as:
  • Axoplasm and cytoskeletons break down.
  • Macrophages appear in the injured area and begin to phagocytize the breakdown material.
  • Schwann cells proliferate by mitosis, forming a line known as Bunger’s band.
  • Schwann cells envelope and form myelin around new regenerating axons.
Step one is initiated by the influx of calcium ions
immediately following an injury. Circulating macrophages and those
within the nerve are attracted to the injured area in large numbers.
After 2 or 3 days, they start to phagocytize these particles and clear
them away.
Schwann cells start to proliferate by mitosis, forming a
line known as Bunger’s band. This degenerative process takes at least 1
to 2 weeks, and electrodiagnostic tests performed during this period
may not pick up any abnormality.
The known key players for Wallerian degeneration are
macrophages, Schwann cells, various neurotrophic factors, the injured
neuron, and end organs. They influence each


other in an intricate interplay, which is currently only partially understood.

If an axon does not regenerate in a timely fashion, the
distal endoneurial tube may collapse, rendering regeneration of the
axon difficult, if not impossible.
This may be the main reason that muscles fail to be
reinnervated following a delayed surgical nerve repair, rather than due
to degeneration of muscle fibers and motor end plates, as previously
During regeneration, Schwann cells and neurons are
interdependent. This relationship is mediated by both neurotrophic
factors and neurite outgrowth promoting factors.
Neurotrophic factors facilitate bidirectional
communication between neurons and Schwann cells. Neurite outgrowth
promoting factors facilitate attachment of growing axons to other axons
and/or Schwann cells, and thus guide nerve regeneration.
Neurotrophic factors are peptides, three major groups of
which have been identified: neurotrophins, neurokines, and the
transforming growth factor (TGF).
The details of axoplasmic transport, nerve conduction,
and neuromuscular transmission are beyond the scope of this text. For
more details of these complex processes, refer to the Suggested
Readings—particularly the chapter on Nerve Physiology and Repair in Hand Surgery Update.
  • Peripheral nerves are most always mixed nerves (they contain both motor and sensory nerve fibers), but the injury may not always involve both components of the nerve.
  • Nerve injuries may be partial, and may spare some vital nerve pathways while injuring others.
  • The appraisal of peripheral nerve injuries involves the examination of both sensory and motor components of the nerve that is being evaluated.
  • Sensory evaluation is based on examination of a nerve’s autonomous zone of innervation (the anatomic site least likely to have any overlap with another nerve).
  • Motor evaluation is focused on the
    functional motor unit that is the last or most terminal muscle to be
    innervated by the nerve under evaluation, or sometimes by the ease of
    examination of a muscle known to be innervated by that nerve.
  • In an acute situation in the emergency room, the sensory evaluation of an injured nerve is best determined by light touch
    rather than by a pin or needle (especially in children). Two-point
    discrimination is a valuable tool for evaluation of sensation, but it
    may be difficult to achieve in an acute injury in the emergency room.
  • Both sensory and motor evaluations are made before any form of local anesthesia is given.
  • In most, if not all instances, the
    diagnosis of a peripheral nerve injury may be made without
    inappropriate exploration of the wound in an emergency room setting.
    The diagnosis is made based on knowledge of the anatomy involved and on
    a focused examination that utilizes that knowledge.
  • When in doubt as to the extent or nature
    of injuries to the nerve from lacerations, explore the wound under
    appropriate anesthesia in an operating room.
The Hoffman-Tinel Sign
  • This is a clinical sign that’s useful for
    determining the level of nerve injury or recovery based on the presence
    of injured or regenerating axons.
  • The test is performed by digital
    percussion of the nerve distal to the site of nerve injury, with
    proximal advancement of the percussion until the site of injury is
    reached or the zone of regeneration is identified.
  • The percussion, performed gently with the
    examiner’s fingertip, progresses along the course of the nerve until
    the endpoint is identified by paresthesia localized either to the zone
    of injury in cases of complete nerve interruption, or distally into the
    zone of cutaneous innervation.
  • Some clinicians prefer to percuss from proximal to distal to the site of the lesion downward until the paresthesia disappears.
  • The paresthesia, or “pins and needles”
    sensation, is caused by the regenerating axons that are sensitive to
    percussion, in part because of the loss of the myelin sheath as part of
    Wallerian degeneration.
  • A positive response over a long segment of nerve may be due to unequal growth rates of various sensory fibers.
  • The sign may be absent in the first 4 to
    6 weeks after nerve suture, and the onset and progress of the sign may
    be inversely proportional to the severity of the injury.
  • Steady distal progression of the endpoint is a favorable sign in nerve regeneration, but it must be recognized that the sign is qualitative, not quantitative.
Conventional Terms Used in Peripheral Nerve Injuries
  • A nerve laceration is said to be high or low (proximal or distal).
  • More than one nerve may be injured in a combined injury. An example is a median and ulnar nerve laceration at the wrist.
  • Combined injuries are often associated
    with injuries to the vascular supply, which may complicate treatment
    and recovery. Furthermore, in some unusual instances, the injured
    nerves may be at different anatomic levels.
Specific Nerve Injuries
  • Figures 13-1 and 13-3 show the classic patterns of motor innervation and sensory distribution of the specific nerves.
  • The three major nerves may be injured at
    any level, but our discussion is confined to nerve injuries in the
    forearm, wrist, or hand.
  • P.218
  • The loss of motor function and sensation will depend on the level of injury.
  • Lesions may be represented by contusion, crush, or partial or complete lacerations.
  • Our discussion will assume that the injuries are complete, and that motor and sensory components are completely lacerated.
Median Nerve
High Lesions
Sensory Deficits
  • Sensory deficit in the flexor aspect of the thumb, index finger, middle finger, and radial half of the ring finger.
  • The autonomous zone of deficit evaluation is the flexor aspect of the terminal phalanx of the index finger (Figure 13-7).
Motor Deficits
  • Loss of pronation of the forearm, flexion
    at the interphalangeal (IP) joint of the thumb, distal interphalangeal
    (DIP) joints of the index and middle fingers, proximal interphalangeal
    (PIP) joints of the four fingers, and abduction-opposition of the thumb.
Figure 13-7
The three autonomous zones of sensation in the hand. These are the
areas least likely to have any sensory nerve overlap, and thus may be
considered reliable areas to test for sensation of the respective
nerves involved. M, median, flexor aspect of the terminal phalanx of
the index finger; R, radial, web space between the thumb and index
finger; U, ulnar, flexor aspect of the terminal phalanx of the little
Figure 13-8 Several week old median nerve laceration showing loss of opposition of thumb, and atrophy of the thenar muscles.
Dynamic Posture
  • Ulnar deviation of wrist with wrist flexion.
  • There is also an inability to perform pulp-to-pulp contact between the thumb and the adjacent digits (opposition).
  • The thumb stays adducted in the palm during attempted opposition (Figure 13-8).
Low Lesions
Sensory Deficit
  • Sensory deficit in the flexor aspect of the thumb, and index finger, middle finger, and ulnar half of the ring finger.
  • The autonomous zone of deficit is the flexor aspect of terminal phalanx of the index finger (see Figure 13-7).
Motor Deficit
  • Loss of abduction-opposition of thumb.
  • Isolated injury of the motor branch of
    the median nerve will result in loss of thumb abduction-opposition
    without sensory deficit (Figure 13-8).
Ulnar Nerve
High Lesions
Sensory Deficit
  • Loss of sensation in the flexor/dorsal
    aspect of the little finger, ulnar half of the ring finger, and
    flexor/dorsal aspect of ulnar half of the hand.
  • The autonomous zone of deficit is the flexor aspect of the terminal phalanx of the little finger (Figure 13-7).
Motor Deficit
  • Loss of flexion of the flexor digitorum
    profundus (FDP) of the ring and little fingers; loss of function in all
    intrinsic muscles except for the lumbricals of the index and middle
    fingers; and loss of flexion in the flexor carpi ulnaris (FCU).
  • Profound wasting of the intrinsic muscles is noted (Figure 13-9).
Dynamic Posture
  • Wrist flexion is associated with slight radial deviation.
  • Attempts to extend the ring and little fingers result in hyperextension at the metacarpophalangeal (MCP) joints,


    and in flexion at the PIP joints. This is called Duchenne’s sign (Figure 13-10).

    Figure 13-9 High ulnar nerve laceration showing profound atrophy of the intrinsic muscles of the hand.
  • Pressure or force over the proximal
    phalanges of these digits by the examiner promotes extension of the PIP
    joints; this is called Bouvier’s sign or maneuver (Figure 13-11).
  • A weak and unstable pinch, with hyperextension of the thumb MCP joint (Jeanne’s sign) and with hyperflexion of IP joint (Froment’s sign), are also classic signs of ulnar nerve palsy (Figure 13-12).
  • There is an inability to cross the middle
    finger over the index finger or to cross the index over the middle
    finger. This indicates a loss of function in the second and first
    dorsal interosseous muscles, respectively.
    Figure 13-10
    Note the claw deformity of the ring and little fingers in this patient
    with a low ulnar nerve lesion. This deformity is characterized by
    hyperextension of the ring and little finger MCP joints and flexion of
    the PIP joints, and is called Duchenne’s sign.
    The deformity is due to loss of the ulnar-nerve-innervated lumbricals
    and the dorsal and palmar interosseous muscles that normally flex the
    MCP joints and extend the PIP joints, and thus “balance” the effects of
    the extrinsic flexors of the fingers.
    Figure 13-11
    Pressure or downward force over the proximal phalanges of the clawed
    ring and little fingers (low ulnar nerve palsy) reproduces the action
    of the intrinsic muscles and corrects most of the claw deformity. This
    finding is called Bouvier’s maneuver.
  • The claw deformity may not be as
    prominent in high ulnar lesions compared to low lesions since both the
    flexor digitorum superficialis (FDS) and the FDP extrinsic finger
    flexors are intact in low lesions, and since they account for a
    stronger flexion deformity in the ring and little fingers.
Low Lesions
Sensory Deficit
  • Loss of sensation in the flexor/dorsal
    aspect of the little finger, ulnar half of the ring finger, and
    flexor/dorsal aspect of the ulnar half of the hand.
  • The autonomous zone of deficit is the flexor aspect of the terminal phalanx of the little finger.
Figure 13-12
Froment’s and Jeanne’s signs as seen in ulnar nerve palsy in the left
hand. Note the compensatory hyperflexion of the IP joint (Froment’s
sign) and hyperextension of the MCP joint of the thumb (Jeanne’s sign)
during pinch. This posture is due to loss of the stabilizing force of
the adductor muscle on the MCP joint of the thumb and compensatory
hyperflexion of the thumb IP joint. Note also the atrophy of the first
dorsal interosseous muscle in the thumb-index web space.

Figure 13-13
This patient demonstrates a high radial nerve palsy. Note the loss of
extension of the wrist, thumb, and fingers secondary to a laceration of
the radial nerve above the elbow.
Motor Deficit
  • Motor deficits are the same as in high
    ulnar nerve lesions, except that the FDP function to ring and little
    fingers is intact, and may accentuate the claw deformity.
Dynamic Posture
  • The dynamic posture is the same as in high ulnar nerve lesions.
Radial Nerve
High Lesions
Sensory Deficit
  • There is loss of sensation over the dorsal radial aspect of the hand and thumb.
  • The autonomous zone is in the web space between the thumb and index finger.
Motor Deficit
  • There is loss of extension of the wrist, fingers, and thumb mediated by the EDC, EDM, EIP, ECRB, ECRL, ECU, EPL, EPB and APL.
Dynamic Posture
  • A high radial nerve lesion results in the loss of wrist, finger, and thumb extension, and is commonly called a “wrist drop” (Figure 13-13).
  • This represents a total and high radial nerve lesion before its division into the motor and sensory components.
  • This division may occur in a region that
    is 2.5 cm above or 3.0 cm below a line drawn in the coronal plane
    between the medial and lateral epicondyle of the humerus (Hueter’s
Low Radial Nerve Palsy
Sensory Deficit
  • The high and low lesion convention has
    worked well for the median and ulnar nerves, but works less well for
    the radial nerve because the motor and sensory components are widely
    separated in the proximal forearm.
  • The sensory component
    of the radial nerve may be injured in a “high or low” anatomic
    position. This results in the same clinical manifestations that are
    noted for the high lesion.
Motor Deficit
  • The motor deficit will vary according to the level of injury and the sequence or order of innervation of the respective muscles.
  • The sequence of innervation order is quite variable, but Figure 13-1 shows a common one.
    • A common sequence is the innervation of the ECRL, supinator, and ECRB, in that order.
    • The EDC is most always innervated before the EIP, APL, and EPL.
    • The EDM is usually innervated before the EIP, and the APL before the EPL.
Principles of Nerve Repair
Primary, Delayed Primary, and Secondary Repair
  • Primary repair is defined as repair within hours of injury.
  • Delayed primary repair is repair performed 5 to 7 days after injury.
  • A repair performed more than 1 week after injury is called a secondary repair.
  • Primary nerve repair has emerged as the
    treatment of choice when conditions permit (Box 13-1). If these
    conditions cannot be met, it is better to delay repair.
  • Secondary repair under favorable
    conditions is usually associated with improved outcomes compared to
    nerve repair done under less than ideal circumstances.
  • In cases where timely repair cannot be
    performed, the nerve ends should be sutured together to prevent
    retraction. This will facilitate a future definitive repair.
Techniques of Nerve Suture
Epineurial Suture
  • Magnification improves the results of nerve suture and the operating microscope is a useful tool to facilitate nerve suture.
  • P.221
  • Placement of the proximal and distal nerve stumps on suitable background material in a bloodless field aids in visualization.
  • Correct rotational orientation is
    obtained by matching the fascicular bundles with respect to size and
    position, and matching the orientation of the vascular landmarks.
  • The cut ends are trimmed perpendicular to
    their long axis to remove any damaged tissues and to form a uniform
    surface for contact between the ends.
  • A smooth and uniform transection prior to
    repair may be achieved by devices that hold or stabilize the nerve
    during the transection.
  • A single suture is placed to join the epineurial edges furthest from the surgeon.
  • A second suture is then placed at 180 degrees from the first to form equal halves.
  • Done properly, this will result in
    matching opposing surfaces, without bulging, retraction, or twisting of
    the individual fascicles.
  • An 8-0 or 9-0 suture is used for these
    two critical stitches in a major peripheral nerve, and the tails are
    left long to permit rotation of the nerve.
  • The inability to bring the nerves ends
    together with 8-0 sutures indicates excessive tension, and further
    mobilization or grafting should be considered.
  • Additional interrupted sutures of 10-0 are used to bisect the 180-degree arc formed by the first two sutures.
  • Additional sutures are added in a similar
    fashion to complete the repair but a “watertight” repair is neither
    necessary nor desired.
Group Fascicular Suture
  • Group fascicular suture requires greater magnification and is technically more challenging than epineurial suture.
  • This suture technique is less tolerant of repair under tension due to the less substantial nature of the internal epineurium and perineurium.
  • The proximal and distal stump surfaces
    are inspected to identify fascicular groups. Fascicular groups tend to
    separate from other fascicular groups, and with gentle traction and
    dissection with curved microscissors, fascicular groups may be
  • Matching fascicular groups are trimmed at
    right angles to their longitudinal axis and separated for a distance of
    3 to 4 mm in the proximal and distal stumps.
  • A retention suture placed in the
    posterior epineurium is useful to control tension and permit rotation
    of the nerve to aid in placement of sutures in the various fascicular
  • The fascicular groups are joined from
    back to front by sutures placed in the internal epineurium or
    perineurium. Only the minimum number of sutures necessary to produce
    uniform coaptation of the fascicular group is placed.
Individual Fascicular Suture
  • The separation of individual fascicles is technically challenging and is less commonly used for nerve suture.
  • Large fascicles may accept two 10-0 sutures, but a single suture may be appropriate for smaller fascicles.

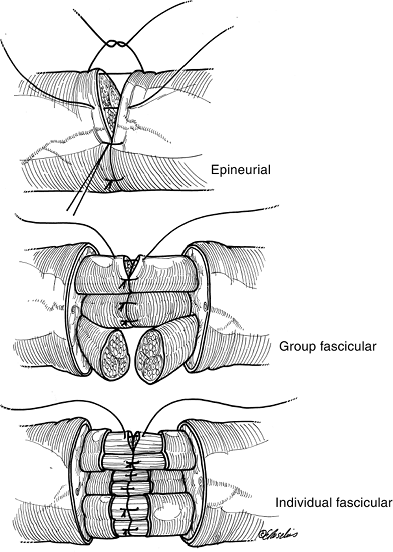

    Figure 13-14 The three techniques of peripheral nerve repair.
  • This technique may be most useful in partial nerve lacerations where only a portion of a group fascicle has been lacerated.
  • Figure 13-14 demonstrates the three techniques of peripheral nerve repair.
Fascicle-Matching Techniques
  • Accurate matching of sensory and motor components of a severed nerve is an important factor in the outcome of nerve repair.
  • Techniques that aid in matching include
    using intraneural mapping, intraoperative nerve stimulation, and
    histochemical identification of the motor and sensory components.
  • The later two techniques have time
    constraints and technical aspects in their performance that limits
    their use. They may be most useful in secondary nerve reconstruction.
The details of these techniques are beyond the scope of this chapter.
Nerve Grafting
  • There are many instances in nerve repair where loss of nerve substance does not permit a tension free rejoining of the injured nerve.

    Figure 13-15 A. This 22-year-old man sustained a deep laceration to the inner aspect of his left arm. B, C.
    This resulted in sensory deficits in the median and ulnar distribution
    and a median and ulnar claw hand (a combined high median and ulnar
    palsy). D. He was treated with fascicular
    bundle nerve grafts (sural nerves) to the median and ulnar nerves, with
    recovery of wrist and finger flexion and protective sensation in the
    • This is most often seen in secondary
      nerve repair where excision of the scarred and damaged nerve ends
      results in a significant gap that mitigates against a tension-free
  • Earlier efforts at nerve graft included
    interposition of trunk grafts that matched the size of the injured
    nerve; cable grafts composed of smaller nerves, bundled together, to
    fill the gap; and a pedicle nerve graft in which one major nerve was
    sacrificed and used to replace what was considered to be a more
    important nerve.
  • The current technique to restore continuity in a nerve with a significant gap is called group fascicular nerve grafting.
  • The technique consists of removing all
    interposed scar tissue between the two ends of the involved nerve, and
    interposing autogenous nerve grafts (usually the sural nerve or nerves)
    to matching fascicles in the proximal and distal stumps.
  • Matching of fascicles is most easily
    achieved in gaps of 4 to 6 cm, although larger gaps may be filled and
    suitable results obtained (Figure 13-15).
  • The lateral antebrachial cutaneous nerve in the forearm may be used to fill gaps in digital nerves.
A discussion of the role of free vascularized nerve
grafts, nerve conduits, and neurotropism is beyond the scope of this
Prognosis and Timing of Nerve Repairs
  • In general terms, the results following
    nerve repair are best within the first 3 months after injury—but
    reinnervation may be expected within 1 year following injury.
  • No reinnervation can be expected after 3 years.
Tendon Transfers in Nerve Injury
  • In some instances, nerve repair is not possible—but useful upper extremity function may be restored by tendon transfers.
  • In some instances following nerve repair, a useful level of sensory recovery (protective sensation or better) may be anticipated without motor recovery. It is in these cases that tendon transfer may be most useful.
  • Tendon transfers work best in supple
    joints without fixed contracture and when suitable soft tissue beds are
    available for passage of the tendons.

    Figure 13-16 A.
    Wrist scar, loss of opposition, and thenar eminence atrophy can be seen
    in this 65-year-old male with complete sensory loss in the median nerve
    distribution. B. Epineurial repair of the median nerve was performed along with a FDS opponensplasty.
    Figure 13-17 Intermediate level radial nerve palsy. A.
    Preoperative appearance of an injury to the posterior interosseous
    branch of the radial nerve (PIN) with loss of thumb and finger
    extension. B, C. Function was restored by transfer of the PL to the rerouted EPL and transfer of the FCR to the EDC tendons.

    Figure 13-18 A. Clinical appearance of an ulnar claw hand. B. Secondary epineurial repair of the ulnar nerve was performed. C, D.
    The EIP tendon was split into two tails, passed through the
    interosseous spaces beneath the axis of rotation of the MCP joints, and
    sutured to the radial lateral bands of the ring and little fingers. E.
    This transfer replaced the function of the interosseous muscles,
    rebalanced the extrinsic flexors and extensors, and corrected the claw
  • The simple treatment algorithm is: (1)
    what function is lost, and (2) what expendable muscle/tendon units are
    available for transfer.
  • Selection of an appropriate muscle tendon
    unit is based on its cross-sectional area (strength) and excursion
    (fiber length), in order to mimic as much as possible the muscle
    tendon/unit being replaced.
  • Mechanical factors include orientation of
    the transfer for a straight-line pull, one transfer to perform one
    function, appropriate tension, placing the transfer in the proper
    relationship to the joint axis, and when needed, a strong and suitably
    placed pulley or fulcrum.
These transfers are only examples of the many tendon
transfers used to restore function in the upper extremity. Refer to the
Suggested Reading list for a more comprehensive discussion of the topic.
Low Median Nerve Palsy
Figure 13-16 demonstrates the
preoperative appearance of a 65-year-old male with a one-year-old
laceration of the flexor aspect of the left wrist. There was loss of
sensation in the median nerve distribution and loss of opposition of
the thumb. Treatment included excision of the median nerve neuroma,
epineurial repair, and opponensplasty using the FDS of the ring finger
to the abductor position of the thumb. Opposition was restored along
with protective sensation in the median nerve distribution.
Intermediate Level Radial Nerve Palsy
Figure 13-17 demonstrates the preoperative appearance of an injury to the posterior interosseous branch of the radial nerve (PIN),


with loss of thumb and finger extension. The level of injury was distal
to the innervation of the wrist extensors, so wrist extension was
maintained. Restoration of thumb and finger extension was achieved by
transfer of the PL to the rerouted EPL and transfer of the FCR to the
EDC tendons.

Low Ulnar Nerve Palsy
Figure 13-18 demonstrates a
typical claw deformity of the ulnar nerve. It resulted from a
laceration of the ulnar nerve at the distal forearm. Treatment was by
secondary ulnar nerve repair (epineurial) and transfer of a two-tailed
tendon graft using the EIP sutured to the radial side of the lateral
bands in the ring- and little-finger proximal phalanges.
Suggested Reading
TM. Nerve repair and grafting. In: Green DP, Hotchkiss RN, Pederson WC,
eds. Green’s operative hand surgery. 4th Ed. New York: Churchill
Livingstone, 1999:1381–1403.
Buck-Gramcko D, Lubahn JD. The Hoffmann-Tinel sign. J Hand Surg 1993;18B:800–805.
DTW, Choi M, Dellon AL. Nerve physiology and repair. In: Trumble TE,
ed. Hand surgery update-3, hand, elbow and shoulder. Rosemont, IL:
American Society for Surgery of the Hand, 2003:287–297.
Doyle JR, Botte MJ. Surgical anatomy of the hand and upper extremity. Philadelphia: Lippincott Williams & Wilkins, 2002.
ME. Internal anatomy of the peripheral nerve. In: Hunter JM, Schneider
LH, Mackin EJ, eds. Tendon and nerve surgery in the hand. St. Louis:
Mosby-Year Book, 1996:19–25.
H, Meissl G, Berger A. Further experience with intrafascicular grafting
of the median, ulnar, and radial nerves. J Bone Joint Surg
G. Combined nerve palsies. In: Green DP, Hotchkiss RN, Pederson WC,
eds. Green’s operative hand surgery. 4th Ed. New York: Churchill
Livingstone, 1999:1542–1555.
Seddon HJ. Surgical disorders of the peripheral nerves. Baltimore: Williams and Wilkins, 1972.
JE. Tendon transfers. In: Trumble TE, ed. Hand surgery update-3, hand,
elbow and shoulder. Rosemont, IL: American Society for Surgery of the
Hand, 2003:353–370.
KL. Anatomy of the peripheral nerve. In: Hunter JM, Schneider LH,
Mackin EJ, eds. Tendon and nerve surgery in the hand. St. Louis:
Mosby-Year Books, 1996:11–18.
Sunderland S. Nerve and nerve injuries. 2nd Ed. New York: Churchill Livingstone, 1978.
Williams PL. Grays anatomy, 38th Ed. New York: Churchill Livingstone, 1995, Chapter 8, The nervous system.

This website uses cookies to improve your experience. We'll assume you're ok with this, but you can opt-out if you wish. Accept Read More
